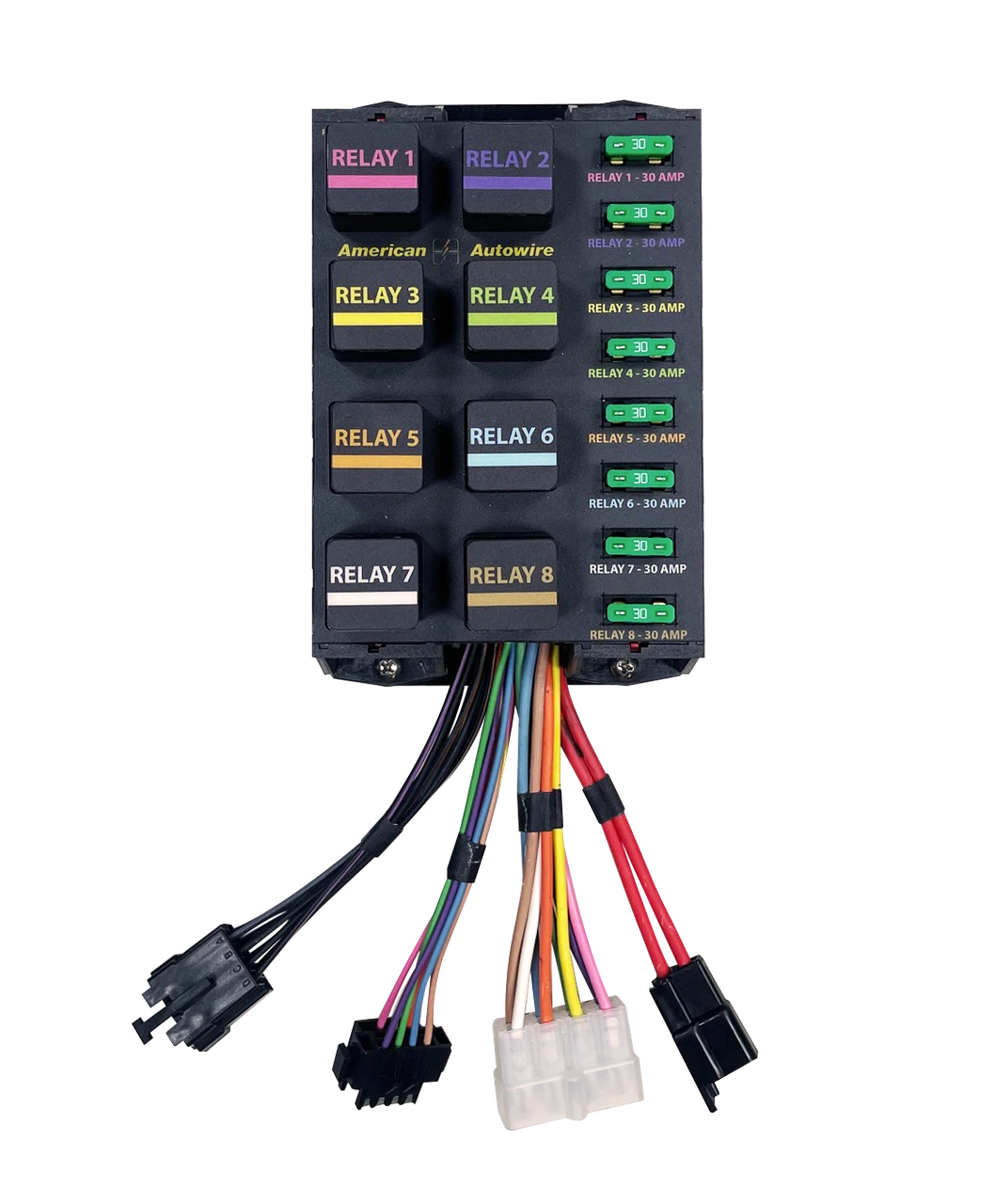

American Autowire 8-Position Banked Relay Panel (AAW510924)
The American Autowire 8-Position Banked Relay Panel (AAW510924) is a professional-grade wiring solution designed to centralize and simplify the electrical system in your vehicle. This pre-assembled panel provides a clean and organized way to manage high-current accessories like electric cooling fans, fuel pumps, and headlights. Whether you're working on a new custom build or cleaning up the wiring in a classic car, this universal kit offers a robust and reliable foundation for your electrical needs.
KEY FEATURES AND BENEFITS:
Comes fully assembled with eight 30-amp relays and corresponding fuses.
Each relay can be individually configured for either ground or 12-volt operation.
Built with robust 6-gauge bus bars for stable power distribution.
Non-conductive G10 composite base plate ensures electrical and heat insulation.
Includes durable GXL wire, resistant to heat and abrasion.
Helps organize and declutter modified vehicle wiring for a professional finish.
Part Number: AAW510924
Dimensions: 4.5" x 7.5" x 3.25" (Height)
Relay Capacity: 30 Amp
Bus Bars: 6 Gauge
Wire Length: 48 inches per lead
Included in Purchase: Fuses, 30 amp relays, color-coordinated labels, detailed installation instructions, 48-inch wire leads, and hardware
Mount the Panel: Securely mount the panel in a convenient, protected location in your vehicle using the included hardware.
Connect Main Power: Connect your main power feed to the panel's Terminal 30 to provide the primary power source for all relays.
Wire the Accessories: Connect the main power output (Terminal 87) from each relay to the positive lead of its corresponding accessory.
Connect Control Wires: For 12-volt operation, connect a switched 12-volt source to Terminal 85 and a ground to Terminal 86. For a ground-triggered setup, connect Terminal 85 to a constant 12-volt source and use a switched ground on Terminal 86.
Install Fuses and Relays: Insert the included fuses and relays into their designated positions on the panel, using the labels for correct placement.
BENEFITS OF USING THE AMERICAN AUTOWIRE 8-POSITION BANKED RELAY PANEL (AAW510924):
Protects Low-Current Devices: Prevents high-current loads from damaging switches or low-current components.
Organized Wiring: Centralized panel offers a neat, professional installation.
Simplified Troubleshooting: Easy-to-read labeling and layout help quickly identify and resolve issues.
Versatile Application: Configurable relays support both ground and 12-volt operations.
Pre-assembled for quick and easy installation
Eight relay positions for managing multiple accessories
Supports both ground and 12-volt relay configurations
Durable non-conductive G10 composite base construction
Equipped with heavy-duty 6-gauge bus bars
48-inch heat- and abrasion-resistant GXL wire leads included
Color-coded labels for simplified identification
Provides a secure, centralized solution for high-current accessories
Product identification
- Brand: American Autowire
- Model / MPN: AAW510924
