American Autowire 68-69 Chevy Chevelle Classic Update Kit (AAW510158)
The American Autowire 68-69 Chevy Chevelle Classic Update Kit (AAW510158) for the 1968-1969 Chevy Chevelle and El Camino is a comprehensive wiring solution designed to modernize the electrical system of your classic vehicle. Unlike a factory-style replacement, this kit provides a complete, front-to-back harness that is built to handle the demands of modern upgrades and accessories. It is the ideal choice for "resto-mod" projects, offering a reliable electrical foundation that goes far beyond the capabilities of the original factory wiring. The kit is built with high-quality GXL wire and features a modern, blade-style ATC fuse panel, ensuring a safer and more efficient system for your vehicle.
KEY FEATURES AND BENEFITS:
Modern Electrical Reliability: Updated ATC fuse panel replaces old glass fuses, providing a safer and more reliable system.
Accommodates Aftermarket Upgrades: Supports EFI systems, aftermarket gauges, high-output alternators, and modern air conditioning.
Simplified Installation: Pre-labeled wires every few inches and a pre-built dash harness with a gauge cluster disconnect system make installation easier.
Customizable Routing: Extra-long leads for engine, front lights, and rear body allow flexible, hidden installation.
High-Amp Charging Support: Includes a 175-amp mega fuse kit with a 6-gauge charge cable for high-output charging systems.
Product ID: AAW510158
Vehicle Compatibility: 1968-1969 Chevy Chevelle & El Camino
Fuses: ATC blade-style

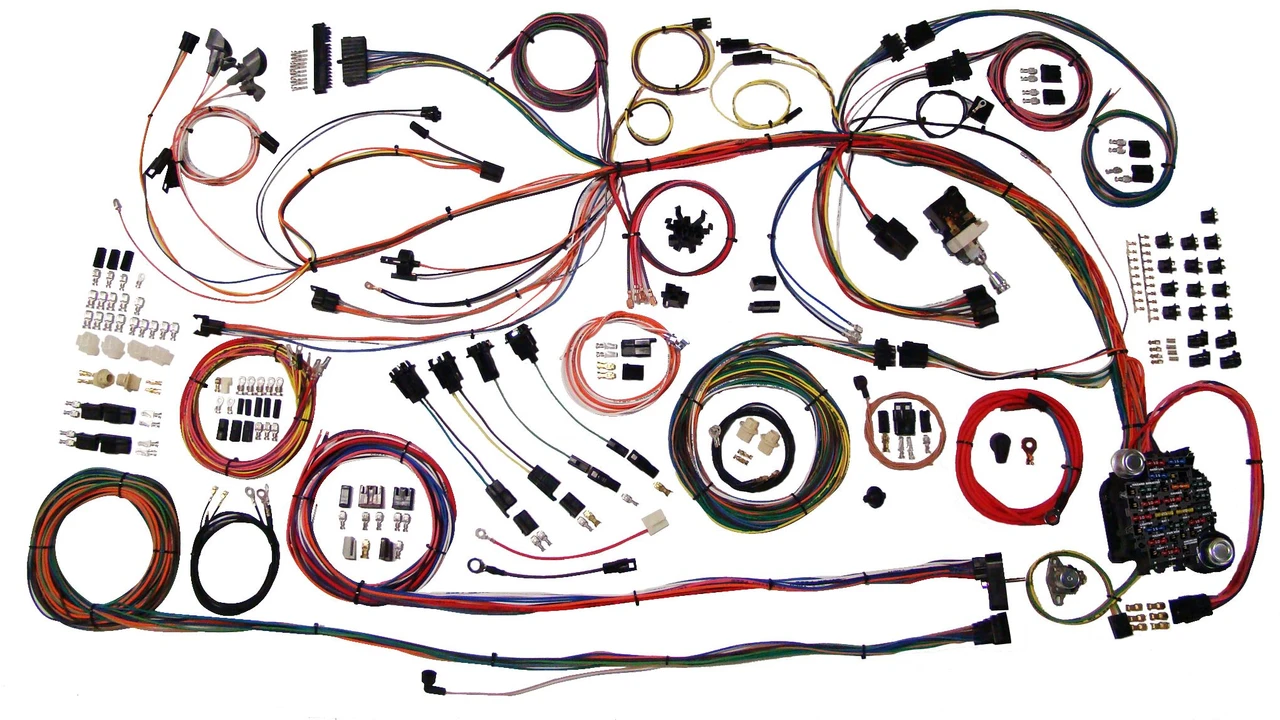

Included Components:
New ATC fuse panel with cover
Pre-built dash harness
Engine and front light harness with extra-long leads
Rear body wiring harness with extra-long leads
New headlight switch with 26 amp internal circuit breaker
New floor dimmer switch
New ignition switch with tumbler and keys
175 amp mega fuse kit with 6-gauge charge cable
Original-replacement connectors and terminals
Original-style bulkhead connectors
Detailed, full-color schematic and installation instructions
Prepare the Vehicle: Disconnect the battery and remove the old factory wiring harness.
Install the New Fuse Panel: Mount the new ATC fuse panel in the designated location.
Connect the Dash Harness: Install the pre-built dash harness and connect it to the fuse panel using the gauge cluster disconnect system.
Route Front and Rear Harnesses: Run the engine and front light harness through the firewall and the rear harness to the taillights and accessories.
Terminate Wires: Crimp and connect wires to headlights, turn signals, engine sensors, and switches with the provided connectors.
Finalize Connections: Install the new switches and connect the 175 amp mega fuse kit with the 6-gauge cable to the alternator.
Test the System: Reconnect the battery and test all circuits before final assembly.
BENEFITS OF USING AMERICAN AUTOWIRE 68-69 CHEVY CHEVELLE CLASSIC UPDATE KIT (AAW510158):
Improved Safety: Modern ATC fuse panel reduces the risk of shorts, overloads, and fires.
Increased Reliability: GXL wire and updated connectors withstand heat and vibration better than factory wiring.
Future-Proofing: Extra circuits and modern design support upgrades and accessories.
Streamlined Installation: Pre-labeled wires and detailed instructions make DIY installation easier.
Complete Solution: Replaces the entire harness, eliminating splicing or patching into old wiring.
Dash harness includes a connector for modern GM steering columns.
Six-way power accessory plug included for aftermarket accessories.
Connectors provided for both in-dash and steering column-mounted ignition switches.
Engine and front light harness has extra-long leads for custom routing.
Rear body wiring harness with extra-long leads for flexible routing to taillights and accessories.
Product identification
- Brand: American Autowire
- Model / MPN: AAW510158
