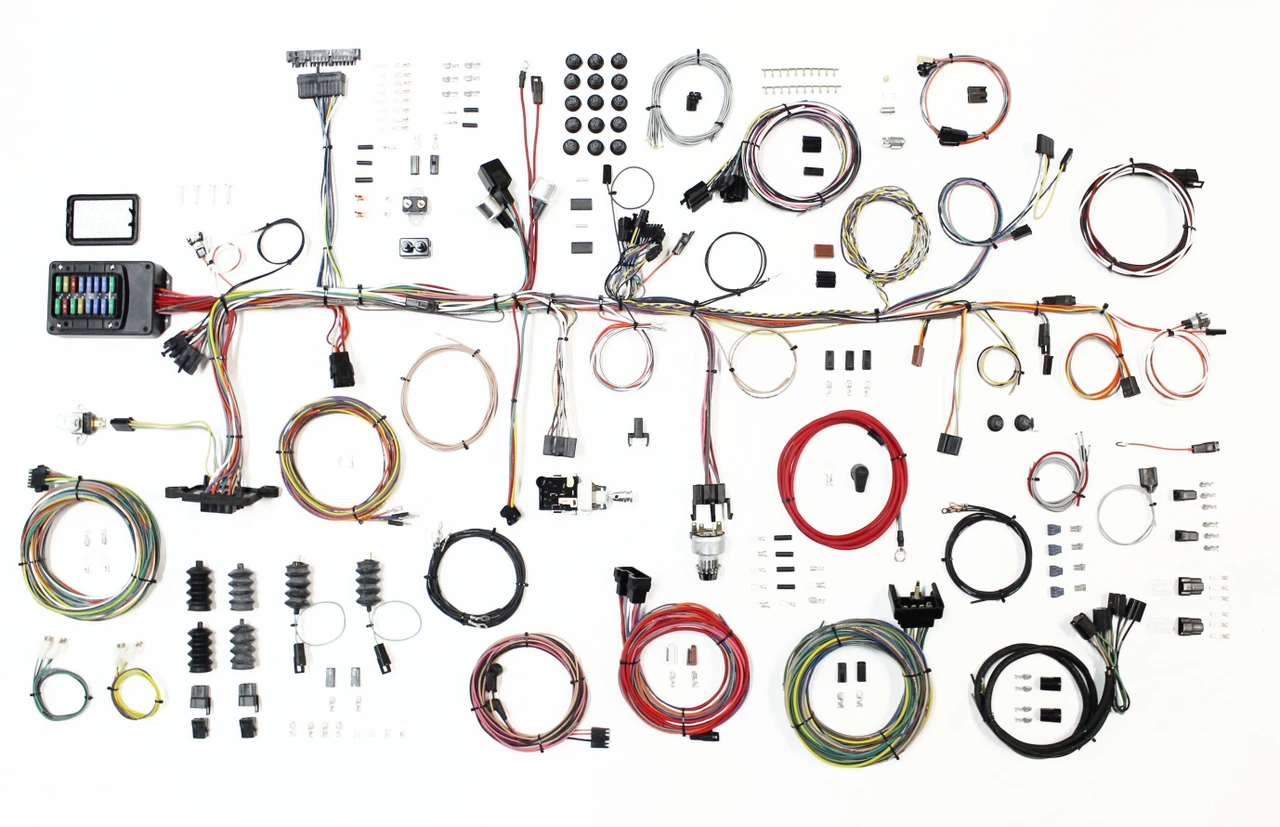

American Autowire 63-67 Chevy Corvette Classic Update Kit (AAW510612)
The American Autowire 63-67 Chevy Corvette Classic Update Kit (AAW510612) is a comprehensive wiring solution designed to replace your vehicle’s entire electrical system. Built for modified or "resto-mod" projects, this kit supports modern upgrades like electronic fuel injection (EFI), aftermarket gauges, and air conditioning, providing a labeled, reliable electrical foundation from headlights to taillights.
KEY FEATURES AND BENEFITS:
Modern Electrical Capacity: Includes updated ATC fuse panel and fuses with GXL wire to safely power modern accessories.
Simplified Installation: Pre-built harnesses with wires labeled every 3 to 5 inches save time and reduce installation complexity.
Accommodates Modern Upgrades: Supports EFI, high-output alternators, and aftermarket gauges.
Direct-Fit and Flexible Connectors: Compatible with both original and aftermarket components; includes gauge cluster disconnect and adaptable steering column connector.
Complete Kit: Includes dash, engine, front, and rear body harnesses, plus headlight switch, dimmer switch, and all connectors and lamp sockets.
Wire Type: Modern GXL Wire
Updated ATC Fuse Panel and Fuses
Pre-built Dash Harness
Pre-built Engine and Front Light Harness
Pre-built Rear Body Wiring Harness
175 Amp Mega Fuse Kit
6 Gauge Charge Cable
Original-Replacement Connectors, Terminals, and Lamp Sockets
Headlight Switch with 26 Amp Internal Circuit Breaker
New Floor Dimmer Switch
Replacement Ignition Switch
Prepare the Vehicle: Disconnect the battery and remove old wiring harnesses.
Mount the Fuse Panel: Install the ATC fuse panel in a suitable location.
Install the Dash Harness: Connect to the fuse panel and route wires to gauges, switches, and dashboard components using labeled wires.
Connect the Engine and Front Light Harness: Route through firewall with bulkhead connectors; connect to engine components, headlights, and front accessories.
Install the Rear Body Harness: Route to taillights, license plate light, and fuel tank sending unit; extra-long leads allow custom routing.
Make Final Connections: Connect headlight, dimmer, and ignition switches; install mega fuse kit and 6-gauge charge cable.
Test the System: Reconnect the battery and test all electrical functions before operation.
BENEFITS OF USING AMERICAN AUTOWIRE 63-67 CHEVY CORVETTE CLASSIC UPDATE KIT (AAW510612):
Reliable Electrical System: Replaces brittle factory wiring with a modern, robust harness capable of handling high electrical loads.
Professional Installation: Labeled wires and clear instructions simplify the process for a clean, safe setup.
Supports Upgrades: Future-proofs your Corvette for modern electronics and performance modifications.
Full 12-volt primary ignition feed for electronic ignition systems.
Six-way power accessory plug for aftermarket add-ons.
Exclusive gauge cluster disconnect system for easy panel service.
Steering column connector compatible with most aftermarket GM columns.
Extra-long leads on all harnesses for custom routing.
175-amp mega fuse kit for high-output charging protection.
Designed to work directly with internally regulated alternators.
Wiring provisions for aftermarket air conditioning and wiper systems.
Product identification
- Brand: American Autowire
- Model / MPN: AAW510612
