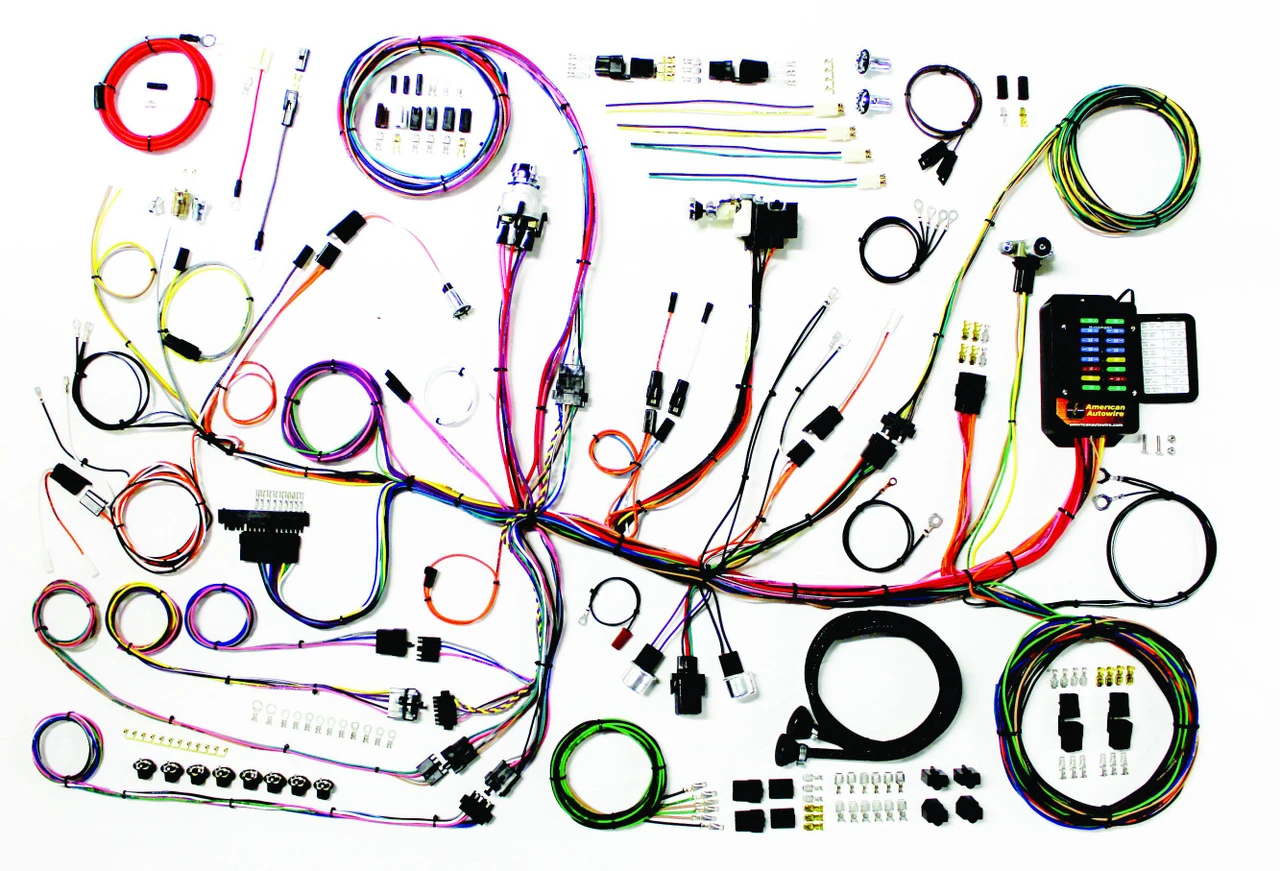

American Autowire 53-62 Chevy Corvette Classic Update Kit (AAW510267)
The American Autowire 53-62 Chevy Corvette Classic Update Kit (AAW510267) is a complete, vehicle-specific wiring harness designed to replace and modernize the entire electrical system of your 1953-1962 Corvette. This kit provides a robust electrical foundation capable of supporting popular modifications and aftermarket accessories. Built with modern GXL wire and clearly labeled circuits, it ensures a straightforward and accurate installation from headlight to taillight. Whether for full restoration or restomod projects, this kit delivers a safe, reliable, and professional-quality electrical system.
KEY FEATURES AND BENEFITS:
Supports Modern Upgrades: Provides circuits for EFI, high-output alternators, aftermarket gauges, and updated air conditioning systems, allowing seamless integration of new technology.
Simplified Installation: Pre-built dash, engine, and rear light harnesses with wires labeled every 3-5 inches reduce installation time and minimize wiring errors.
Improved Safety and Reliability: Includes ATO-style fuse panel and high-amperage mega fuse. GXL wire is heat and abrasion-resistant, ensuring a long-lasting, safe electrical system.
Complete System Replacement: Replaces the entire wiring harness from engine bay to taillights, eliminating the need to splice into old, fragile wiring.
Convenient Accessory Integration: Six-way power accessory plug provides a dedicated and easily accessible power source for aftermarket additions.
Part Number: 510267 (AAW510267)
Application: 1953-1962 Chevy Corvette
Fuse Panel: Modern ATO-style with labeled cover
Included Components:
Pre-built dash harness
Engine and front light harness
Rear body harness
175 amp mega fuse kit with 6-gauge charge cable
New ignition switch with indexed connector
Replacement headlight switch with 26 amp internal circuit breaker
New floor-mounted dimmer switch
Original-replacement connectors, terminals, and lamp sockets
Six-way power accessory plug
Dash harness connector for 1969+ GM steering column with mating connector and terminals
Preparation: Disconnect the battery and carefully remove the old wiring harness, taking photos and notes of connections for reference.
Fuse Panel Installation: Mount the new ATO fuse panel in the stock location using the original mounting points for a clean installation.
Harness Routing: Start with the dash harness, followed by the engine/front light harness, and then the rear body harness. Use extra-long leads for custom routing.
Component Connection: Connect labeled wires to their respective components, including ignition switch, dimmer switch, headlight switch, and gauges.
Final Connections: Connect engine and front lighting harnesses, and route rear body harness to tail lights, fuel sender, and license plate lamp.
Power Up: Connect the 175-amp mega fuse kit and 6-gauge charge cable to the high-output charging system. Reconnect the battery and test all electrical functions.
BENEFITS OF USING THE AMERICAN AUTOWIRE 53-62 CHEVY CORVETTE CLASSIC UPDATE KIT (AAW510267):
Complete Overhaul: Full replacement of the car’s electrical system, eliminating old, potentially faulty wiring.
Future-Proof Design: Supports a variety of aftermarket components and modifications, adaptable to future upgrades.
Increased Safety: Modern fuse panel and high-quality GXL wire protect the vehicle from shorts and failures.
Value Retention: Professional, modern wiring enhances reliability and can increase the vehicle’s value.
Exclusive gauge cluster disconnect system for stock and aftermarket instruments
Front light harness with switched trigger wire for electric fan relay
Original-style bulkhead connectors for clean dash-to-engine connection
New ignition switch compatible with HEI and EFI upgrades
Dash harness connector for 1969+ GM steering column with mating connector
Headlight switch with internal 26 amp circuit breaker
Rear body wiring with twist-in style sockets for stop and tail lights
Dedicated ground lead for fuel tank sender for accurate fuel readings
Product identification
- Brand: American Autowire
- Model / MPN: AAW510267
