American Autowire 1964-67 Pontiac GTO Classic Update Kit (AAW510188)
The American Autowire 1964-67 Pontiac GTO Classic Update Kit (AAW510188) is a comprehensive wiring solution engineered for the complete electrical replacement of 1964-1967 Pontiac GTO, LeMans, and Tempest models. Designed for "restomod" projects, this kit provides a foundation that can handle the increased electrical demands of modern components and accessories. It is not intended for original OEM restorations but is specifically tailored to support popular add-ons such as electronic fuel injection (EFI), aftermarket gauges, and high-output alternators.
KEY FEATURES AND BENEFITS:
Complete System Replacement: Replaces all original wiring from headlights to taillights for a fully integrated electrical system.
Modern Compatibility: Accommodates EFI, HEI ignition, and aftermarket A/C or heating systems.
Enhanced Safety and Reliability: Features an updated ATC fuse panel with modern fuses, plus a 175 amp mega fuse and 6-gauge charge cable for high-output charging systems.
Simplified Installation: Wires are labeled every few inches, with pre-built harnesses and original-style bulkhead connectors included.
Serviceability and Customization: Dash harness features a gauge cluster disconnect system and extra-long leads for flexible routing.
Product ID: AAW510188
Vehicle Compatibility: 1964-1967 Pontiac GTO, LeMans, and Tempest
Fuse Type: ATO-style (ATC)
Wire Type: GXL wire

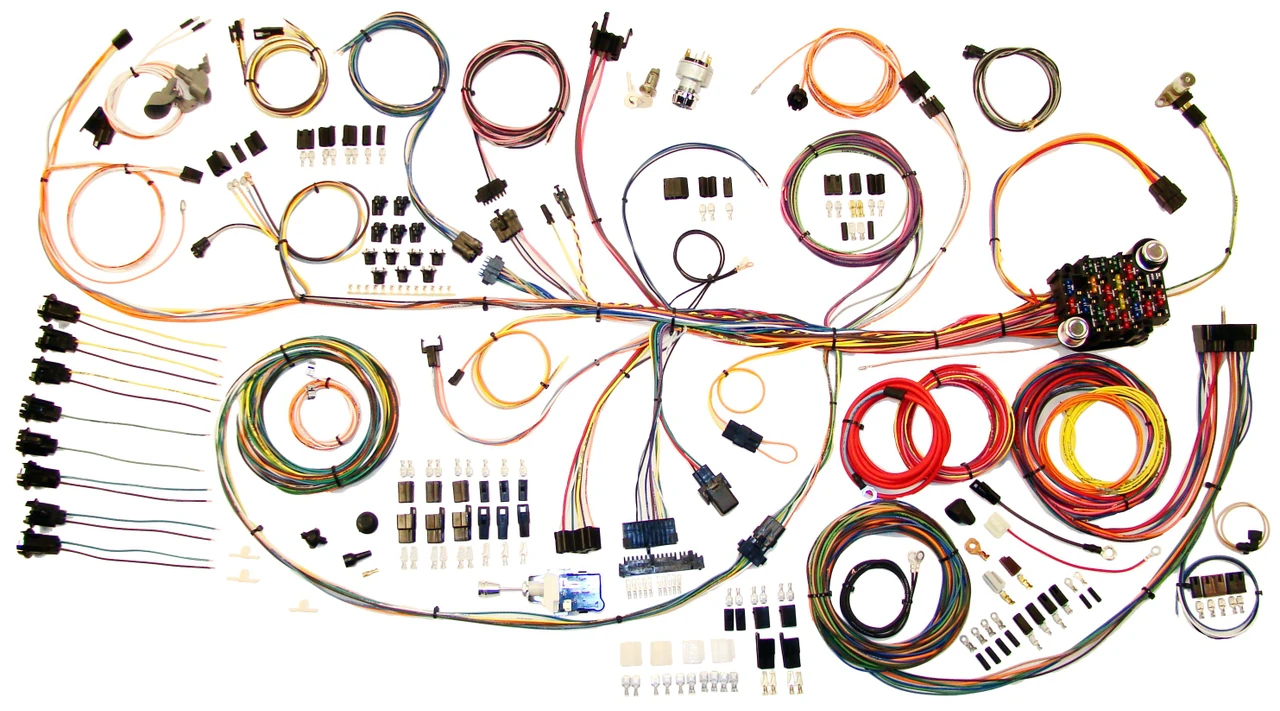

Included Components:
Pre-built dash harness
Engine and front light harness
Rear body harness
Headlight switch with 26 amp circuit breaker
New floor dimmer switch
Ignition switch with tumbler and key
Six-way power accessory plug
175 amp mega fuse kit with 6-gauge charge cable
Turn signal flasher, hazard flasher, and horn relay
Connectors for late-model GM steering columns
Preparation: Disconnect the battery, remove the old wiring harnesses, and prepare the chassis for installation.
Mounting the Fuse Panel: Securely install the new fuse panel under the dashboard in an accessible location.
Install Harnesses: Route and connect the main dash harness, then install the engine/front light harness and the rear body harness.
Connect Accessories: Attach switches, gauges, and other components using the provided schematics.
Final Checks: Inspect all connections, reconnect the battery, and test all electrical systems before operation.
BENEFITS OF USING AMERICAN AUTOWIRE 1964-67 PONTIAC GTO CLASSIC UPDATE KIT (AAW510188):
Safe and Reliable: Provides a modern electrical foundation that reduces the risks associated with old wiring.
Supports Modern Upgrades: Simplifies integration of EFI, HEI, and other aftermarket components.
Enhanced Safety: Modern fuses and heavy-duty charge components minimize fire risks.
Time-Saving: Pre-labeled wiring and detailed instructions streamline installation.
Value-Adding: Improves functionality and enhances the value of classic Pontiac vehicles.
Encased ATC fuse panel for added protection
Harnesses formed to fit original locations
Dash harness with instrument cluster disconnect
Engine harness with extra-long leads for custom routing
Original-style bulkhead connectors included
Six-way power accessory plug provided
Rear body wiring with extra-long leads
Replacement headlight switch with 26 amp circuit breaker
Ignition switch compatible with HEI and EFI systems
Connector included for late-model GM steering columns
Product identification
- Brand: American Autowire
- Model / MPN: AAW510188
