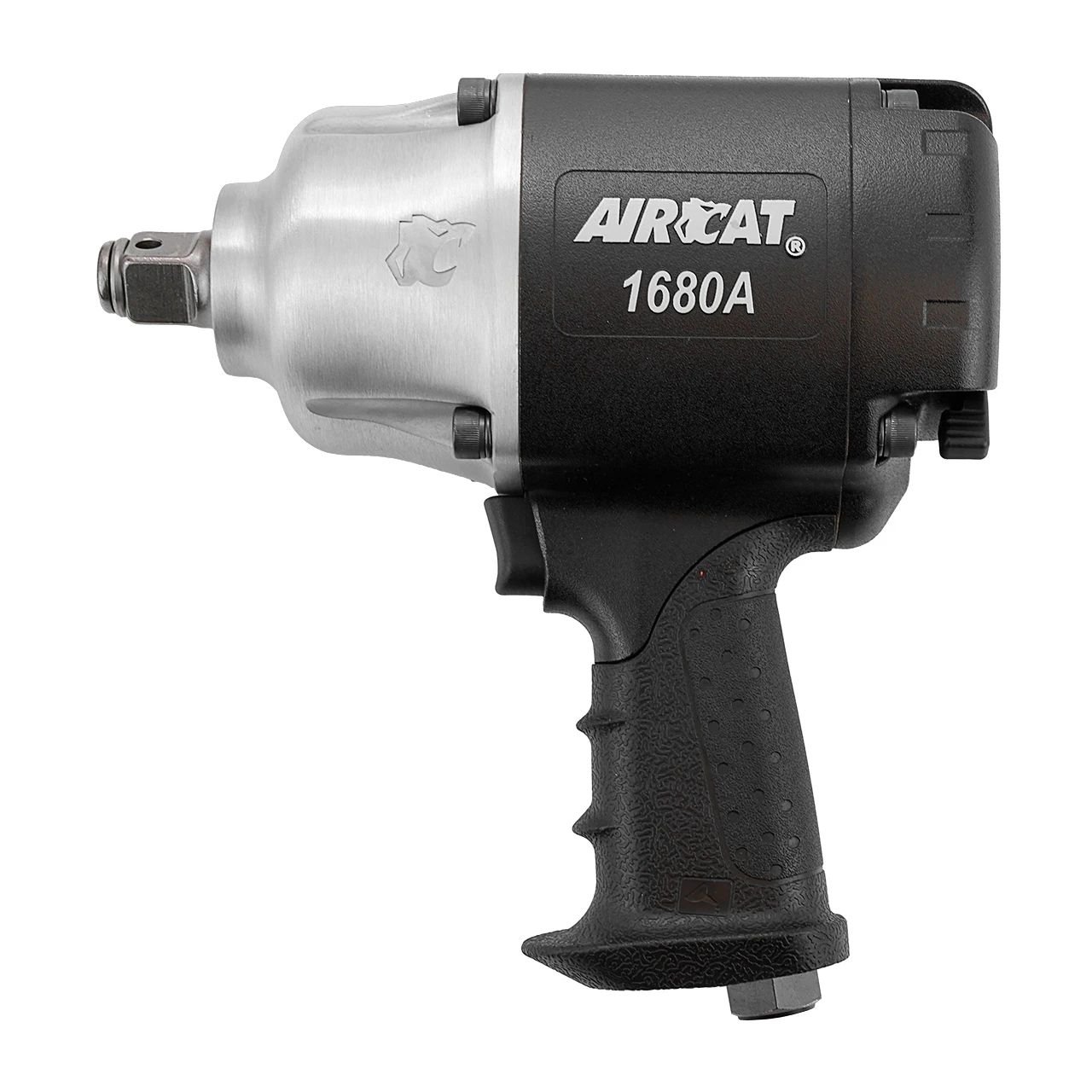

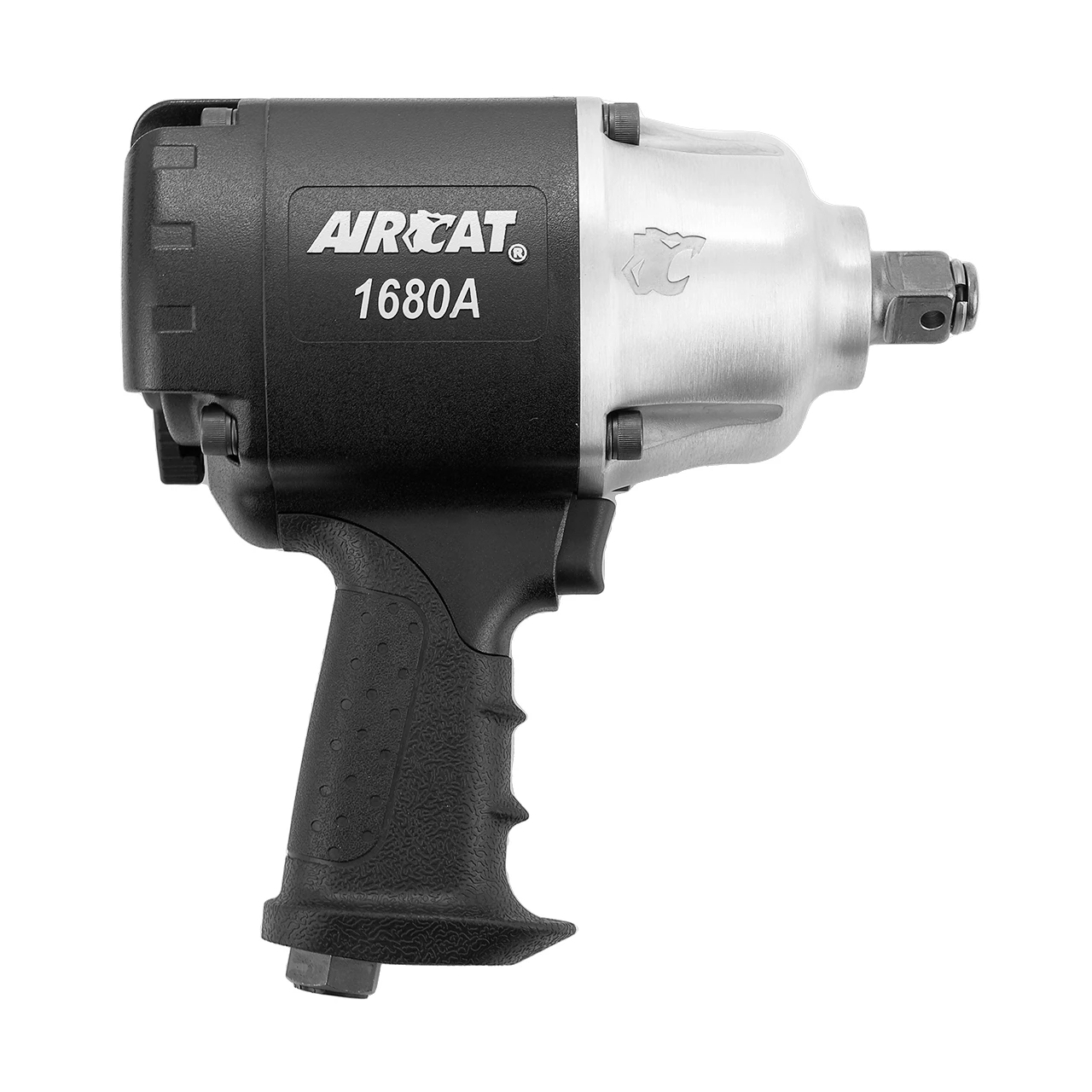

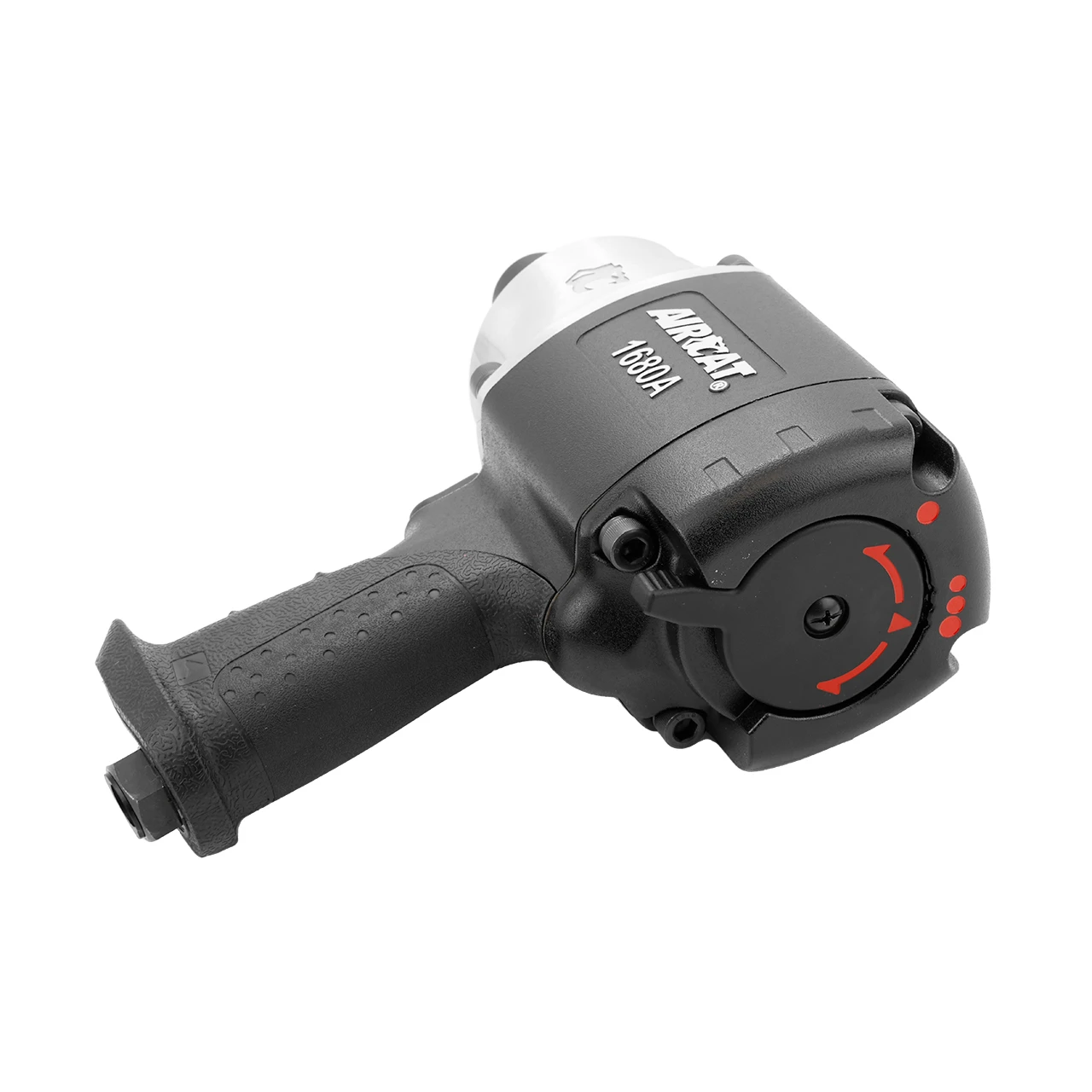

AIRCAT 1680-A Three-Quarter-Inch Twin-Hammer Impact
AIRCAT 1680-A is a three-quarter-inch pneumatic impact wrench with a twin-hammer mechanism and pistol grip. It lists 1,600 ft-lb maximum torque and a 4,500 RPM free speed. Its air inlet is designated 3/8 inch with NPT/BSP alternatives, so the exact supplied thread needs confirmation rather than assuming those standards interchange.
Specifications and included details
- 3/4-inch square drive; twin-hammer mechanism.
- Listed maximum torque 1,600 ft-lb.
- Free speed 4,500 RPM; impact rate 950 per minute.
- Listed air use 8 CFM and recommended half-inch hose.
- Listed weight 12.5 lb and length 8.9 inches.
Before ordering
Confirm operating pressure, delivered flow and the exact inlet thread. NPT and BSP are different connection standards. Maximum torque and output controls do not replace final-torque verification; sockets and air fittings are not itemized as included.
Product questions and answers
Is the drive one inch?
No. The listed square drive is 3/4 inch.
Can NPT and BSP inlet fittings be assumed interchangeable?
No. Confirm the actual supplied thread and matching fitting.
Is a numerical operating pressure supplied here?
No. Check the manufacturer's current air-supply requirements before use.
