AIMS Power 9.6kW Hybrid Inverter Charger 15kW Solar Capacity (PIHY9600)

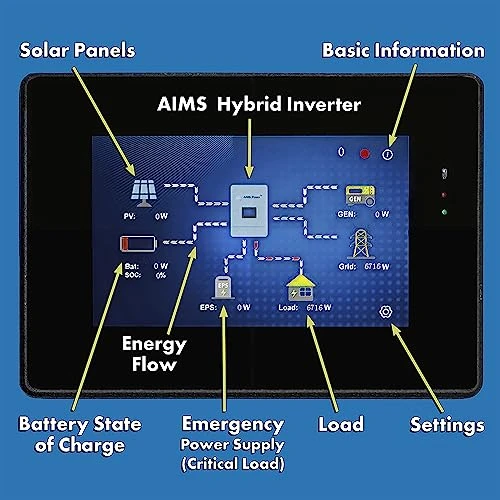

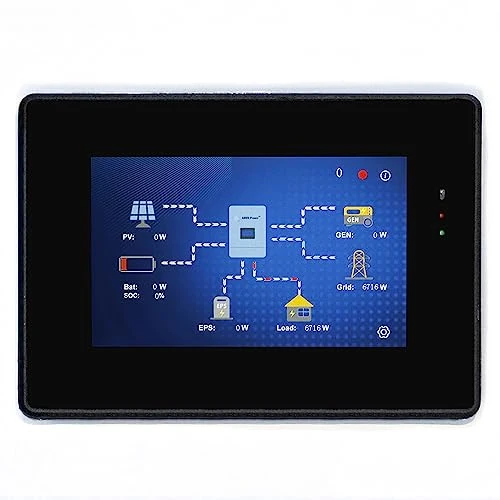

AIMS Power 9.6kW Hybrid Inverter Charger (PIHY9600) is an advanced and highly efficient inverter designed for both off-grid and grid-tied applications. With maximum input power and a versatile PV input range, this hybrid inverter supports multiple battery types, including lithium and lead-acid. The system is stackable, allowing up to 6 units to be connected for increased power capacity. Equipped with a large color LCD and Wi-Fi, RS485, and CAN communication options, it provides real-time monitoring and control. It is ideal for residential, commercial, and solar backup applications, delivering reliable and efficient energy solutions.
Key Features & Specifications:
Max Input Power: 15 kW
Max PV Voltage: 660 V
MPPT Range: 80-550 V
Nominal Voltage: 360 V
Max Input Current: 15.5 x 3 A
Max Short Current: 26 x 3 A
Max Charge/Discharge Power: 11.5 kW | 10.3 kW
Max Charge/Discharge Current: 50 A
Battery Voltage Range: 80-495 V (Lithium & Lead)
Max Continuous Power: 9.6 kW
Nominal Grid Voltage: 240 V (Split Phase)
Max Continuous Current: 40 A | 46.5 A
AC Back-Up Power: 9.6 kW continuous, 11.5 kW peak for 10 minutes
Switching Time: <10 ms
Efficiency: Max 97.6%, PV to Battery Efficiency 98.1%
Protection: PV Reverse Polarity, Battery Reverse Polarity, Anti-Islanding, AC Short Circuit, PV Arc Detection, Residual Current Detection, and more
Enclosure Rating: IP65, NEMA4X
Operating Temperature Range: -25°C to 60°C (-77°F to 140°F)
Mounting: Wall Bracket

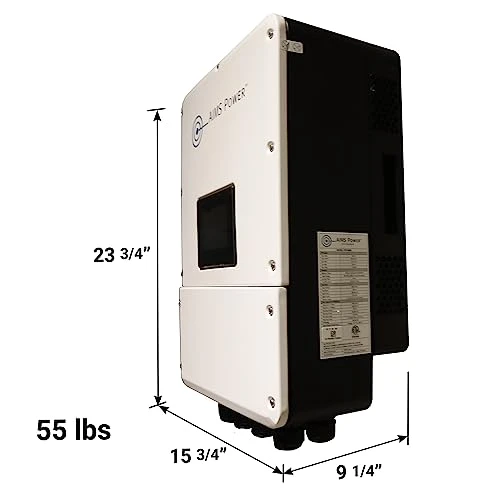

Dimensions: 23 3/4″ x 15 3/4″ x 9 1/4″, Weight: 55 lbs
Product identification
- Brand: Aims Power
- Model / MPN: PIHY9600
