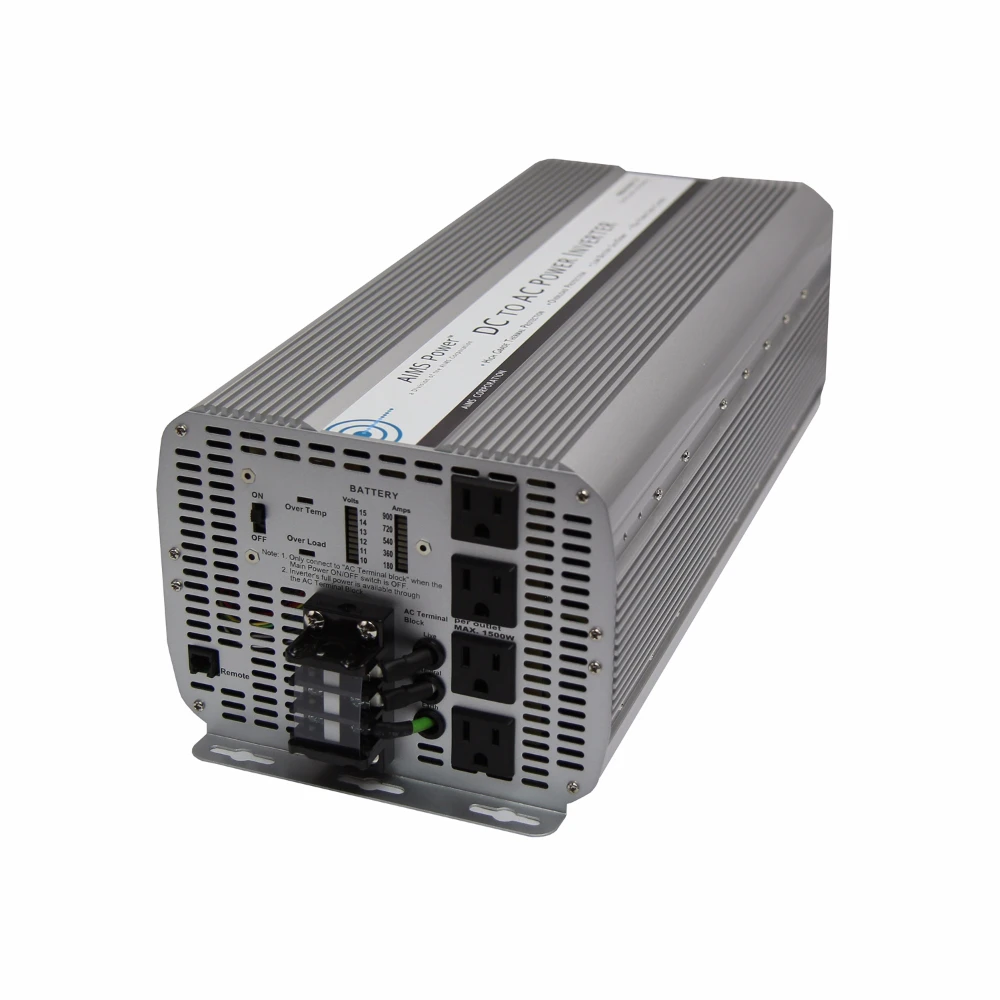

AIMS Power 8000 Watt Modified Sine Inverter (PWRINV8KW12V)
AIMS Power PWRINV8KW12V 8000 Watt Modified Sine Inverter is a powerful and compact solution for various applications. Weighing 20 pounds less than previous models, this inverter is ideal for mobile businesses, RVs, boats, and construction sites. It delivers 8000 watts of continuous power with a surge capacity of 16000 watts, ensuring reliable performance. The redesigned AC outlet layout accommodates larger plugs, while a simplified terminal block with one positive and one negative input makes installation easier. Dual cooling fans and over-temperature protection enhance efficiency, making it a durable and high-performance choice for off-grid power needs.
Compact and lightweight design for easy transport and installation.
Modified sine wave technology with phase correction for stable power.

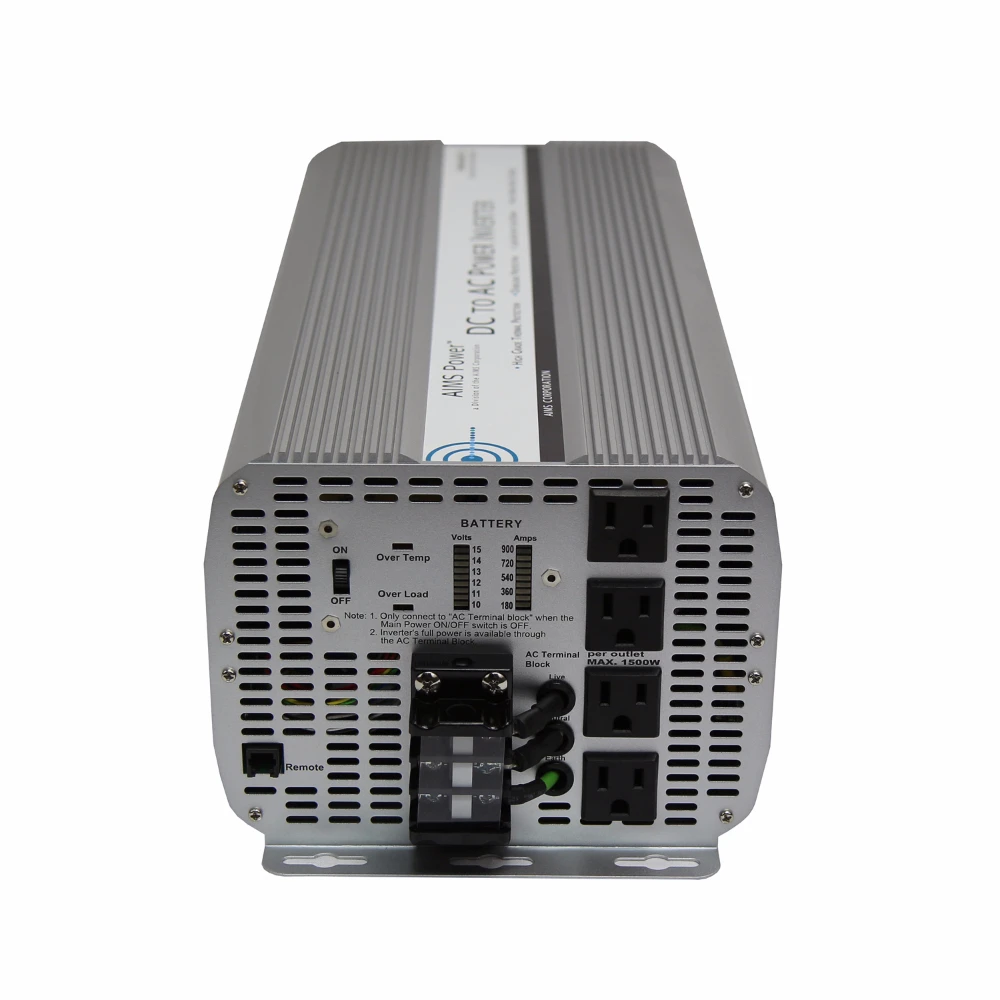

Redesigned AC outlet layout to accommodate larger plugs.
Dual cooling fans for improved heat dissipation.
Over-temperature and high/low voltage protection.
Built-in volt and amp meters for real-time monitoring.
Provides reliable power for RVs, boats, and mobile businesses.

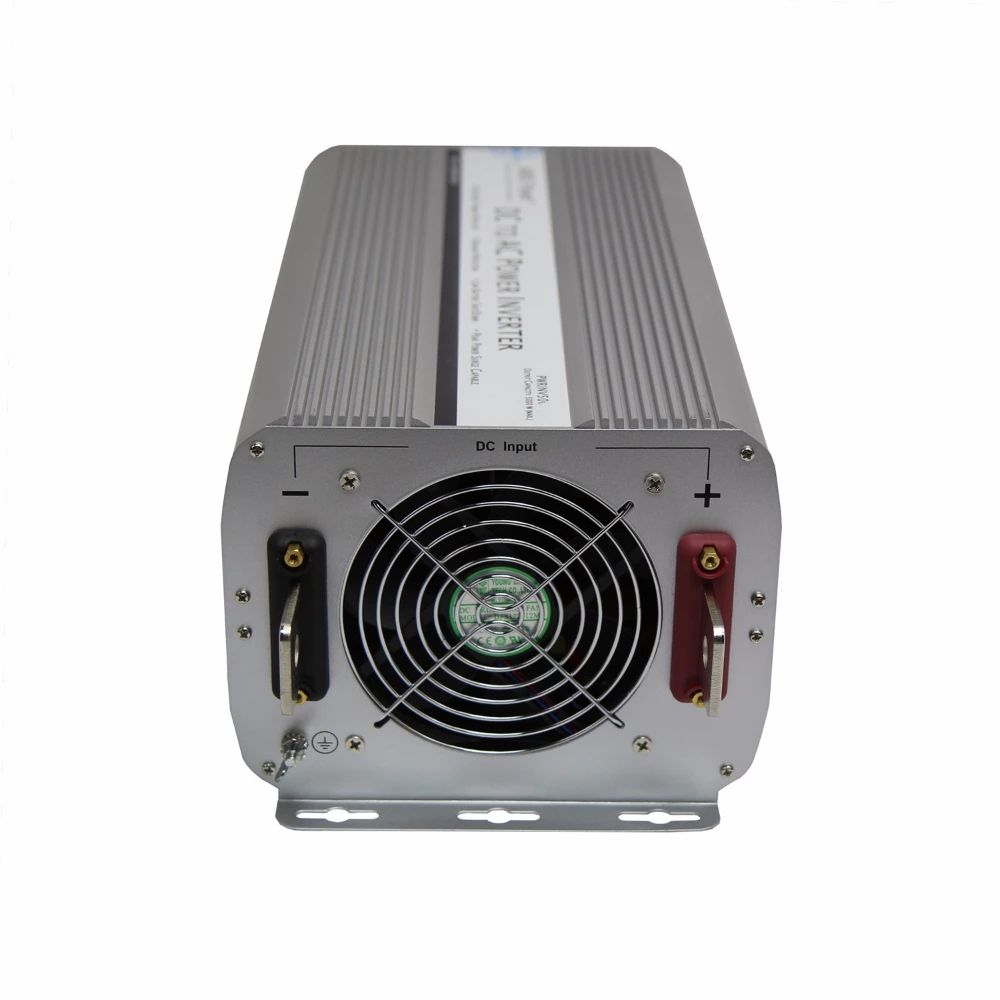

Reduces installation time with a streamlined terminal block.
Ensures efficient performance with built-in safety protections.
Accommodates larger plugs, offering greater versatility.
Designed for durability in rugged environments.
Technical Specifications:
Model: PWRINV8KW12V
Continuous Power: 8000 Watts
Surge Power: 16000 Watts
DC Input Voltage: 10 to 15 Volts
Output Voltage: 120 Volts AC ± 10%
Output Waveform: Modified Sine Wave with Phase Correction
Output Frequency: 60 Hz ± 1 Hz
Battery Low Voltage Alarm: 10.5 ± 0.5 Volts
Battery Low Voltage Shutdown: 10.0 ± 0.5 Volts
Efficiency: 90% (Full Load), 95% (1/3 Load)
Operating Temperature: -15°C to 55°C (Auto Shutdown at Max Temp)
AC Output Sockets: Quadruple Type 2 – 3 Prong
High Input Voltage Protection: 15V-17V
Product Dimensions (L x W x H): 19" x 7" x 6.5"
Weight: 19 lbs (Unit), 24 lbs (Boxed)
UL Maximum Recommended Per Outlet: 1500W
Required Cable: 2 Sets of 4 AWG for 8000 Watts Operation
