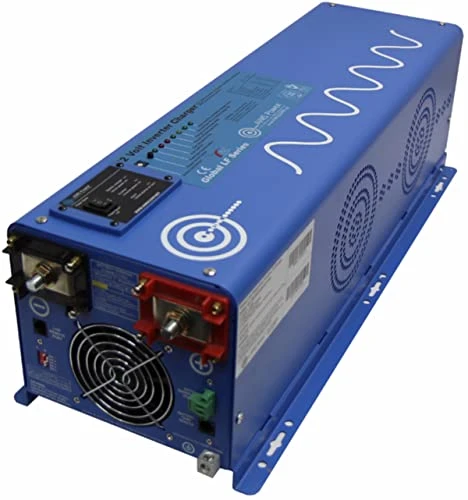

AIMS Power 4000W Pure Sine Low Frequency Inverter Charger (PICOGLF4012120240VS)
AIMS Power 4000W Pure Sine Low-Frequency Inverter Charger is a powerful and reliable solution for residential and industrial applications that require high-quality, consistent power. The inverter’s pure sine wave technology ensures clean, stable power, ideal for sensitive equipment. With a split-phase output, it is versatile enough to work with various electrical systems. The built-in multi-stage charger is compatible with lithium LiFePO4, AGM, gel, and lead batteries. Other notable features include a remote panel for easy monitoring, a battery priority selector, and an automatic transfer switch. Designed for durability, this unit is marine-coated for extra protection in harsh environments.
Key Features & Specifications:
Continuous Output Power: 4000 Watts
Surge Rating: 12,000 Watts (for 20 Seconds)
Output Voltage: 120/240 VAC – Split Phase 60Hz
Output Waveform: Pure Sine Wave / Same as Input (Bypass Mode)
Nominal Efficiency: >88% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 60Hz ± 0.3Hz
Transfer Time: 10ms (Max)
Total Harmonic Distortion (THD): < 10% DC
Operating Temperature Range: 14°F to 122°F (-10°C to 50°C)
Input Specifications:
Nominal Input Voltage: 12.0V DC
Minimum Start Voltage: 10.0V DC
Low Battery Alarm: 10.5V – 11.0V
Low Battery Trip: 10.0V – 10.5V
High Voltage Alarm: 16.0V DC
Battery Voltage Restart: 15.5V DC
Idle Consumption: 50W (Power Saver Mode: 21W)
Charger Specifications:
Charger Rate: 115A
Charge Protection Shutdown: 15.7V
Selectable Charge Setting: Based on battery type
Adjustable Charge Current: Off-20%-100%
Four-Stage Smart Charger
Transfer Switch Specifications:
40 Amp Automatic Transfer Switch
Unit Weight: 75 lbs
Unit Size (L x W x H): 31.5" x 8.75" x 7.25"
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF4012120240VS
