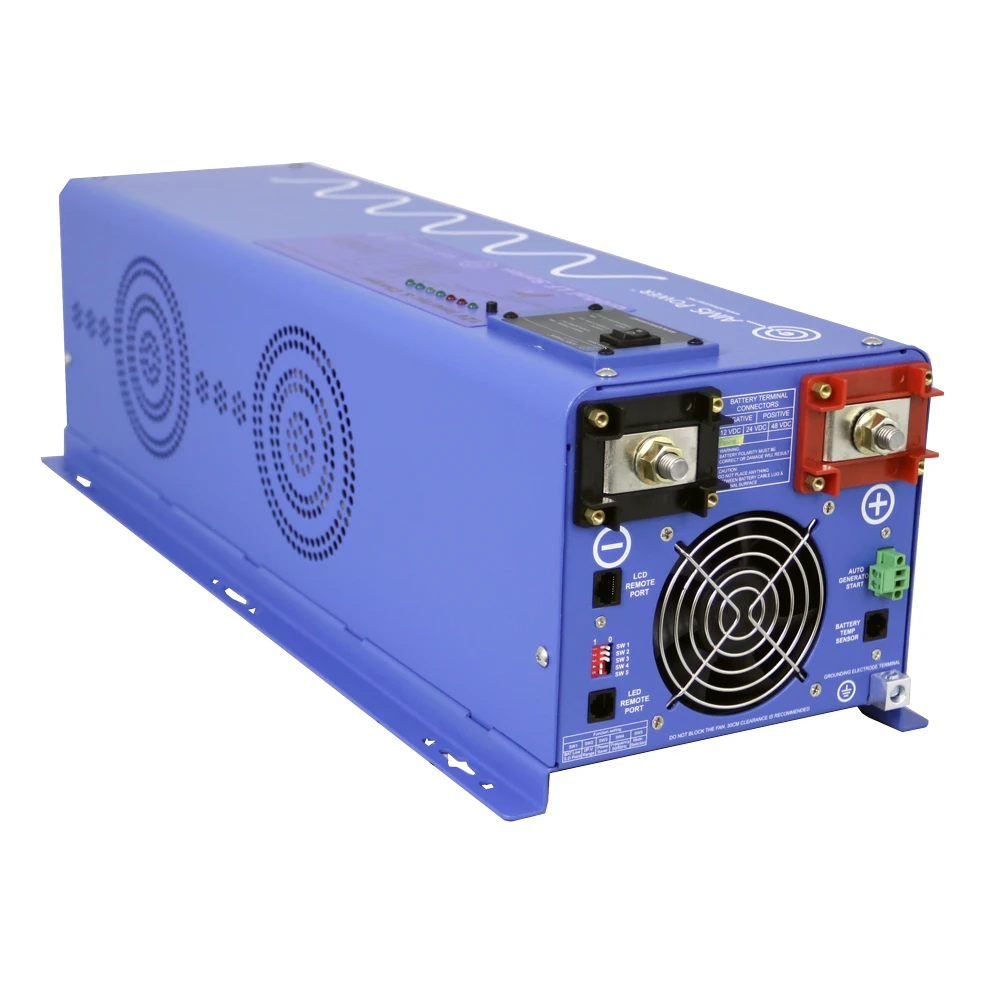

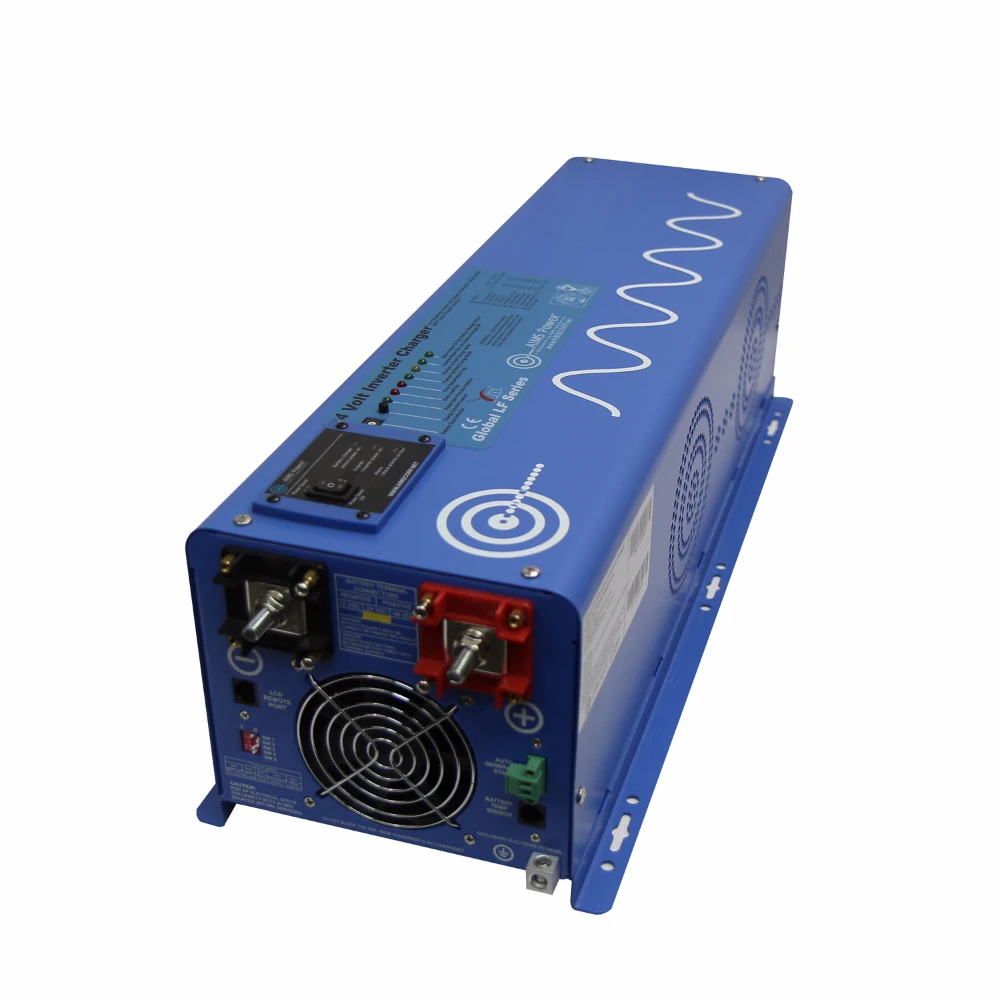

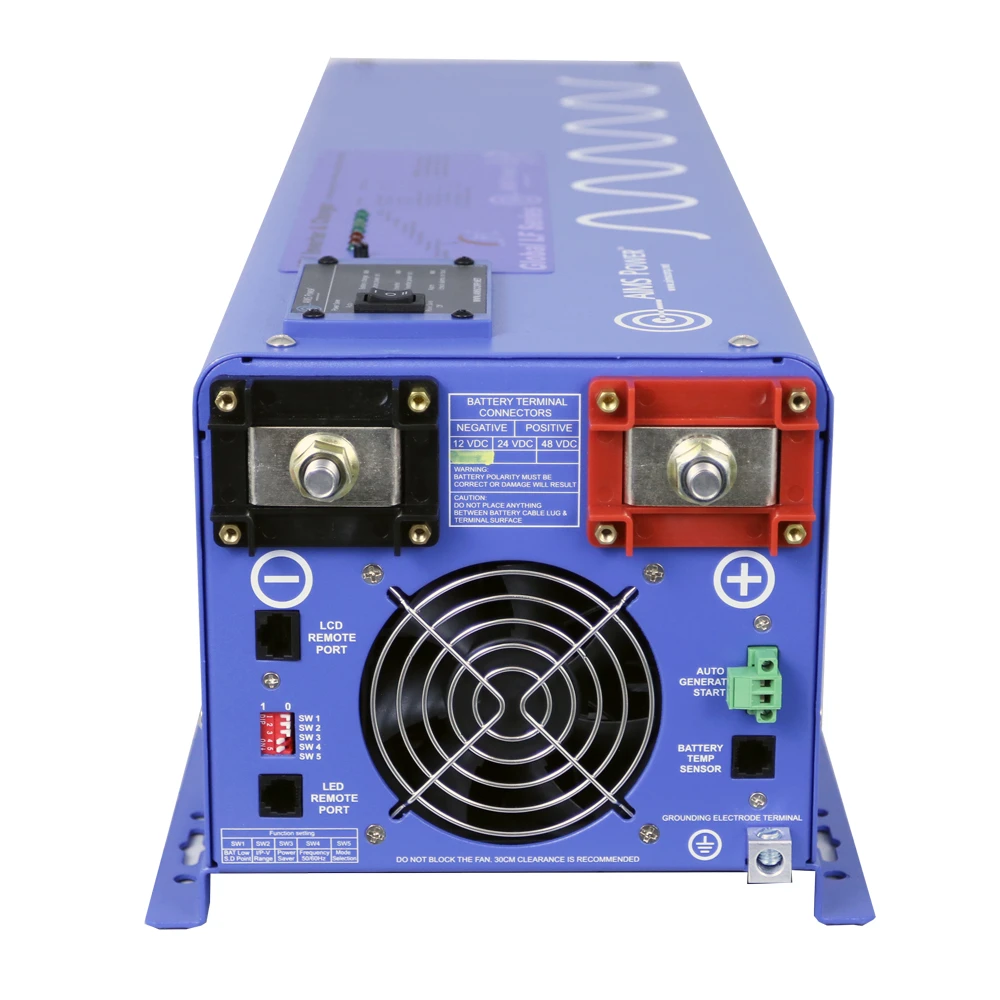

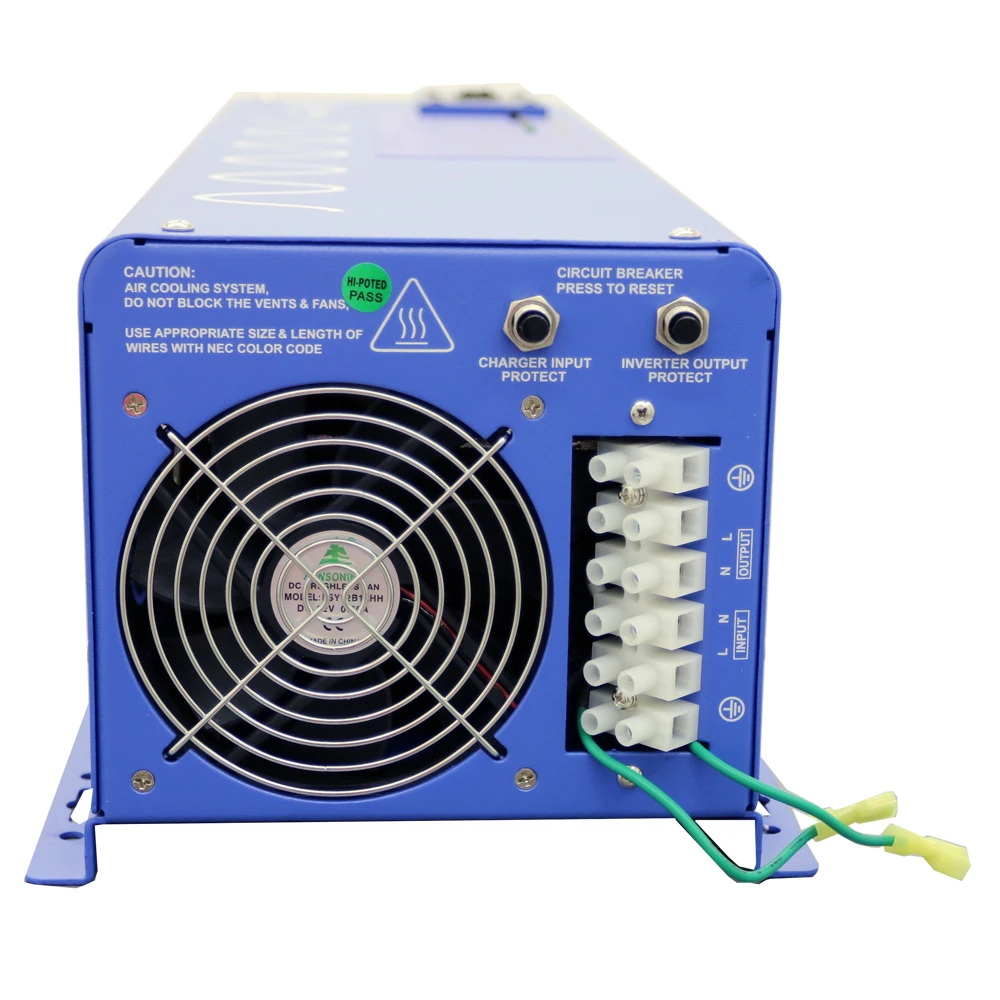

AIMS Power 4000 Watt 24V Pure Sine Inverter Charger (PICOGLF40W24V120V)
The AIMS Power PICOGLF40W24V120V 4000 Watt Pure Sine Inverter Charger is an exceptional choice for creating a reliable power system. Its high-wattage capacity enables seamless operation of sensitive electronics, perfect for industrial use, recreational vehicles, or marine applications. The inverter charger accepts power from any source, including generators and shore power, and features auto frequency detection for global compatibility. This unit is ideal for applications like powering aftermarket stereo equipment on boats or running essential electronics in motorhomes. With a battery priority mode, it can operate directly from a battery bank, maximizing efficiency and ensuring that backup power is available when needed. The Power Saver mode conserves energy by entering a low-power state when the load is minimal, further extending battery life.
Continuous Output Power: 4000 Watts
Surge Rating: 12000 Watts (20 Seconds)
Output Voltage: 100-110-120 Vac
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Nominal Efficiency: >88% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
Typical Transfer Time: 10ms (Max)
Total Harmonic Distortion (THD): <10% DC
Nominal Input Voltage: 24.0 Vdc
Minimum Start Voltage: 20.0 Vdc
Idle Consumption: 5 Amps DC
Charger Rate: 50A
Over Charge Protection Shutdown: 31.4V
Dimensions: 23.5 x 8.59 x 7.05 inches
Unit Weight: 62 lbs.
Automatic Transfer Switch: 40 Amp, 10 ms (max)
Multi-stage smart charger with 7 battery type settings
Product Manual included
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF40W24V120V
