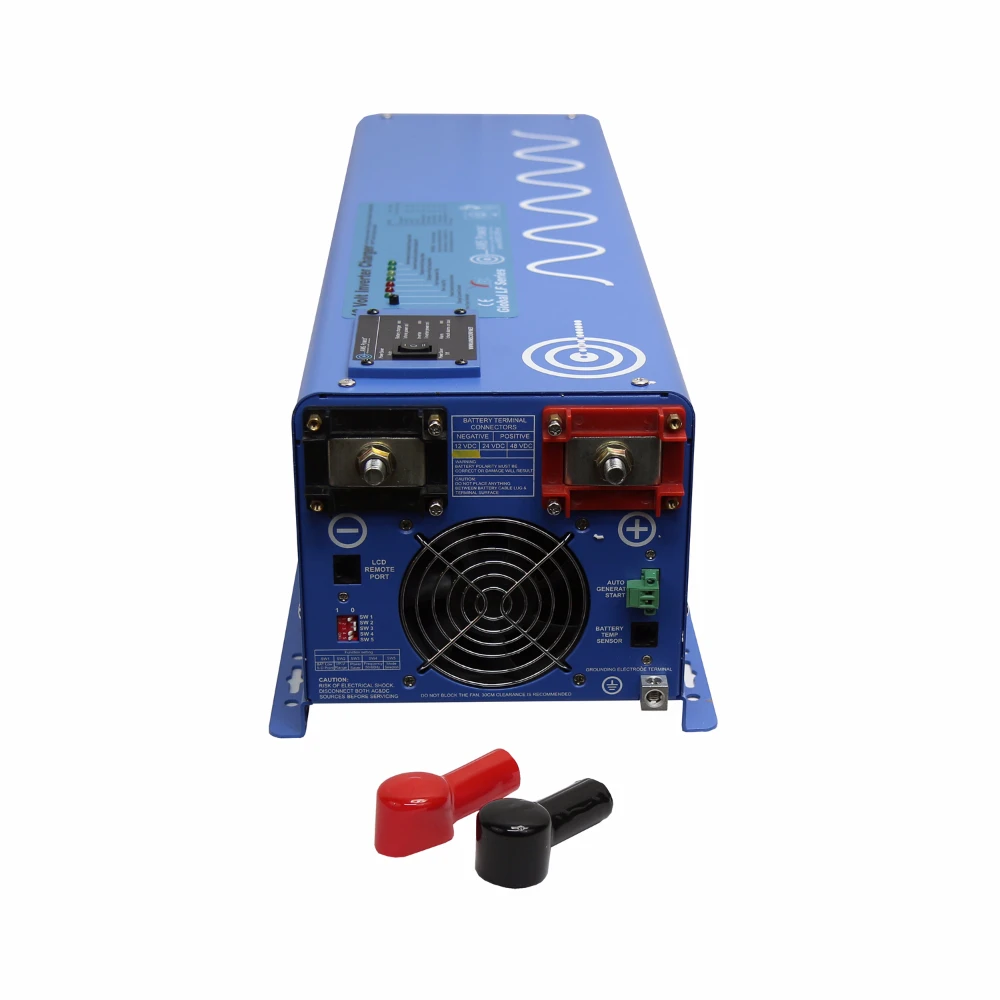

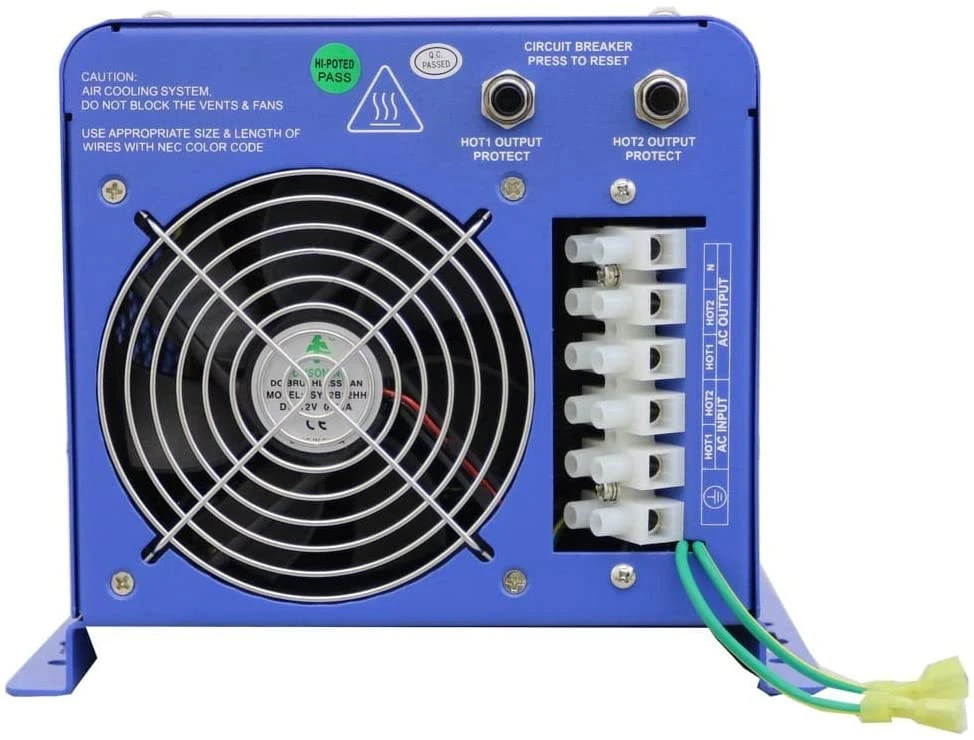

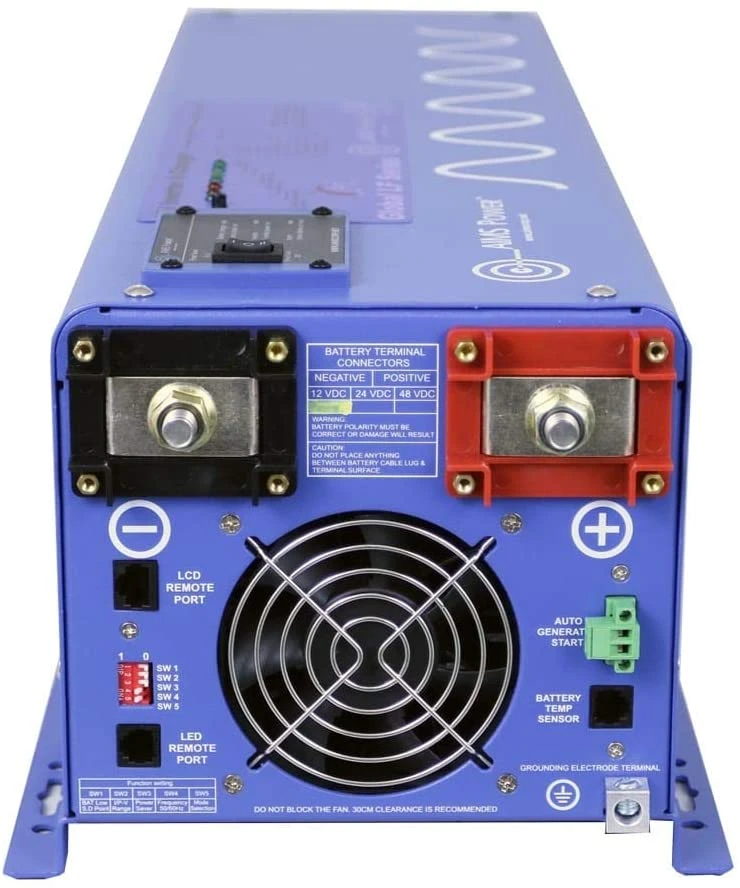

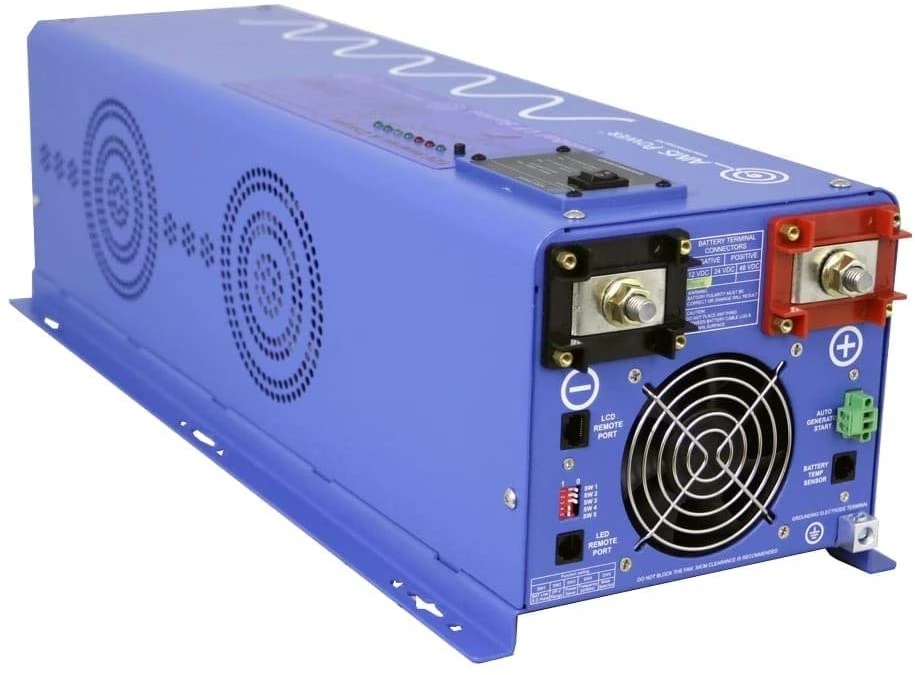

AIMS Power 4000 Watt 12V 120/240VAC Inverter Charger (PICOGLF40W12V240VS)
The AIMS Power PICOGLF40W12V240VS 4000 Watt Pure Sine Inverter Charger is an exceptional solution for those seeking reliable power for a variety of applications. The marine-coated design adds durability against moisture and dust, while the multi-stage smart charger rate optimizes charging for various battery types. This inverter also includes a battery priority selector, a remote panel option, and an efficient auto frequency feature, ensuring seamless performance.
Continuous Output Power: 4000 Watts
Surge Rating: 12000 Watts (20 Seconds)
Output: 120/240 Vac – Split Phase 50 or 60 Hz
Output Waveform: Pure Sine / Same as input (Bypass Mode)
Nominal Efficiency: >88% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
Typical Transfer Time: 10ms (Max)
Total Harmonic Distortion (THD): <10% DC
Nominal Input Voltage: 12.0 Vdc
Minimum Start Voltage: 10.0 Vdc
Idle Consumption: <3.47 Amps DC
Power Saver Mode Idle Consumption: <0.53 Amps DC
Charger Rate: 100A
Over Charge Protection Shutdown: 15.7V
Dimensions: 23.5 x 8.5 x 7.0 inches
Unit Weight: 77 lbs.
Automatic Transfer Switch: 40 Amp, 10 ms (max)
7 battery type settings for charger
Product Manual included
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF40W12V240VS
