3M 1-3/4" X 1/4" X 1" Unitized Wheel Mandrel 990 (15012)
The 3M 1-3/4" X 1/4" X 1" Unitized Wheel Mandrel 990 (15012) is a versatile tool designed to hold and secure 3M's 3" x 3/8" radial bristle discs (PNs 07542, 07543, 07544) to rotary tools such as die grinders. This allows for efficient surface preparation and cleaning operations.
KEY FEATURES AND BENEFITS:
Stackable Design: Allows for stacking up to four discs on the mandrel, increasing efficiency by covering a larger surface area in less time.
Compact Size: The small mandrel shank (1-3/4" x 1/4") provides easy access to tight spaces and intricate workpieces, making it ideal for various applications.
High RPM Capability: Designed to operate at speeds up to 14,000 RPM, enabling fast and effective material removal.

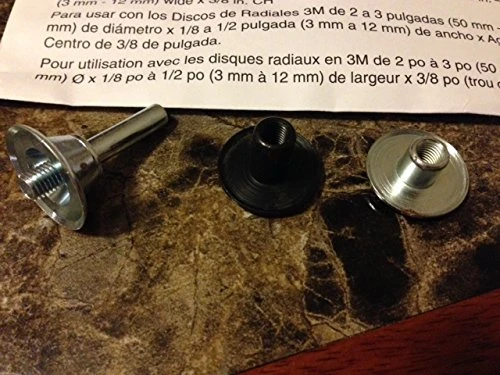

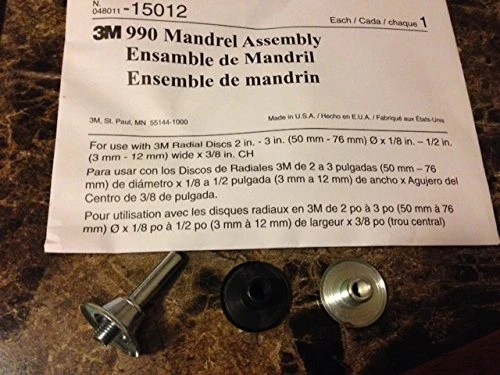

Secure Disc Attachment: Includes flanges and a retainer nut to firmly hold the abrasive discs in place, ensuring consistent performance and operator safety.
Designed for use with: 3" x 3/8" radial bristle discs (PNs 07542, 07543, 07544).
Allows stacking of: One to four discs.
Mandrel shank size: 1-3/4" x 1/4".
Center hole: 3/8".
Max RPM: 14,000.
Select the appropriate number of discs: Choose the number of discs based on the width of the surface to be cleaned.
Assemble the discs: Stack the selected discs onto the mandrel, ensuring they are securely aligned.
Attach flanges: Place a flange on each side of the disc stack.
Secure with retainer nut: Tighten the retainer nut to firmly hold the discs in place.
Attach to rotary tool: Insert the mandrel shank into the collet of the rotary tool.
Operate the tool: Use the rotary tool to clean or prepare the surface according to your specific application.
BENEFITS OF USING 3M 1-3/4" X 1/4" X 1" UNITIZED WHEEL MANDREL 990 (15012):
Increased Efficiency: The stackable design and high RPM capability significantly improve cleaning speed and productivity.
Improved Access: The compact size allows for easy access to tight spaces and intricate workpieces.
Versatility: Compatible with various 3M radial bristle discs, enabling its use in a wide range of applications.
Enhanced Safety: Secure disc attachment minimizes the risk of disc dislodgement, improving operator safety.
Durable steel construction: For long-lasting performance.
Compatible with various 3M radial bristle discs: Ideal for use with 3M die grinders.
Product identification
- Brand: 3M
- Model / MPN: 15012
