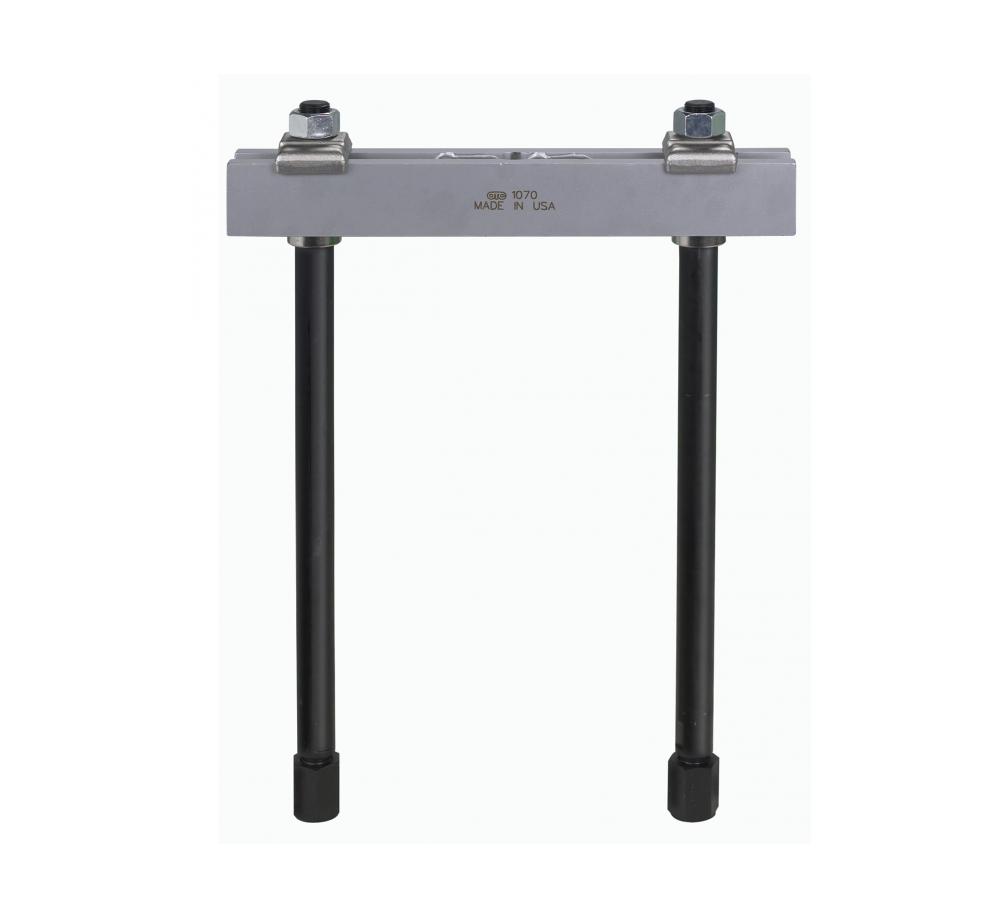

30-Ton Hydraulic Push-Puller
Can be used with No. 1126 or 1127 bearing pulling attachments or No. 680 pulley pulling attachment (two No. 8012 adapters are required to connect No. 680 to puller). Also may be used with No. 1166 internal pulling attachment. Ends of legs are threaded 1" – 14. Usable reach is 12-1/8"
Max Reach: 20-1/2"
Max Spread: 7" to 16-1/4"
Screw Size: 1-1/4" – 7 x 24"
Notes/Weight: Puller only, 56 lb.
Extra legs (pair) for No. 1070, 1071 (reach equals leg length puls 2-5/8" with leg end caps.)
Product identification
- Brand: OTC
