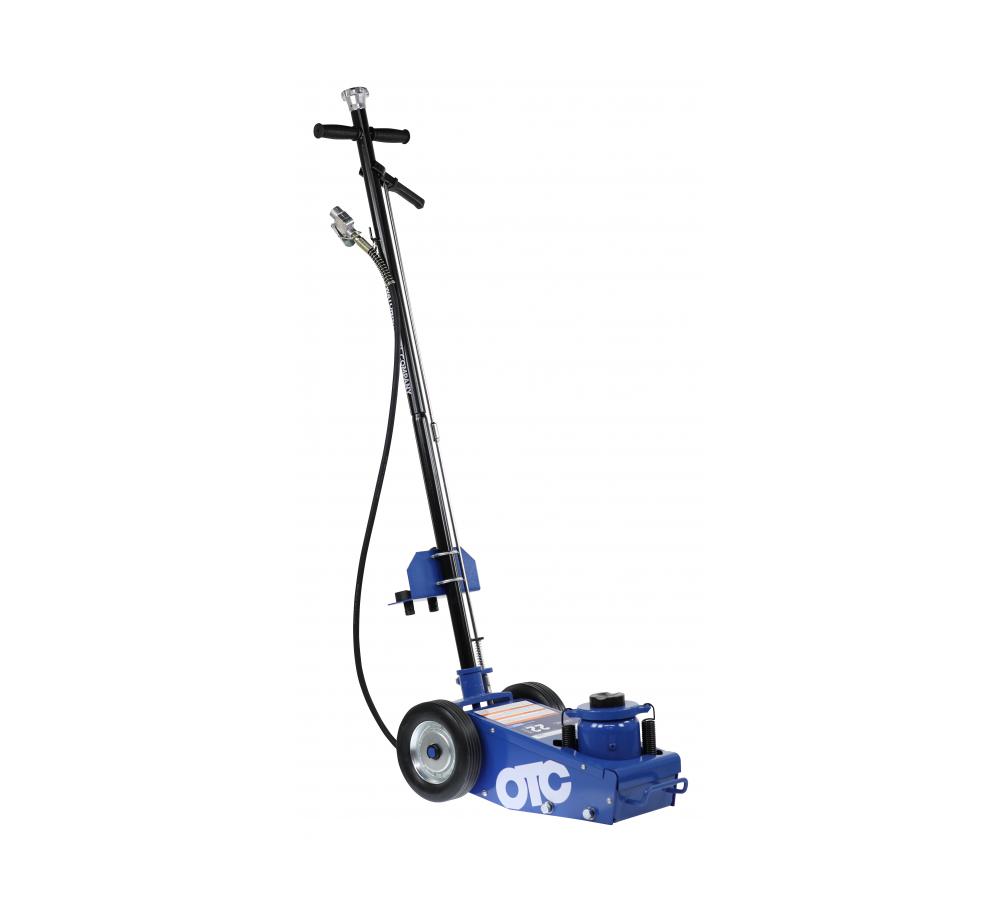

22 Ton Under Axle Jack
4-1/2" Cylinder stroke, 4-1/2"; 4-1/4" extended screw length.
Ideal size for safely lifting heavy duty vehicles.
Air pressure: 90 – 145 PSI
Lifting range: 8.27" to 20-2/3" using longest saddle
Saddle: 3" dia., round with center notch. Includes 3 saddle lengths:
Max height using ¾” saddle: 17-3/4”
Max height using 1-15/16” saddle: 18-15/16”
Max height using 3-7/8” saddle: 20-2/3”
Frame height: 8.27"
Handle length: 47.24" T handle with lowering lever and air-chuck hook
Footprint: 22.63" x 11.73"
Wheels: 2 fixed; 7.88" rubberized steel
Meets all 5 ASME PASE-2019 safety standards for service jacks
Features
- Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more
- Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
- Chrome plated ram for additional rust resistance
- Wiper seals protect hydraulic system from contaminants
- 3 Position handle makes it easy to position under vehicles with low overhangs
- Wide rugged base adds stability and strength
- Large rear wheels provide easy positioning and portability
- Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction
Included components
- 22 Ton Under Axle Service Jack
- 49-1/2" T Handle with position control rod and lever
- 3 Attachments for adjusting height application
- OTC Owners Manual for service jacks with training (operating) instruction
Product identification
- Brand: OTC
