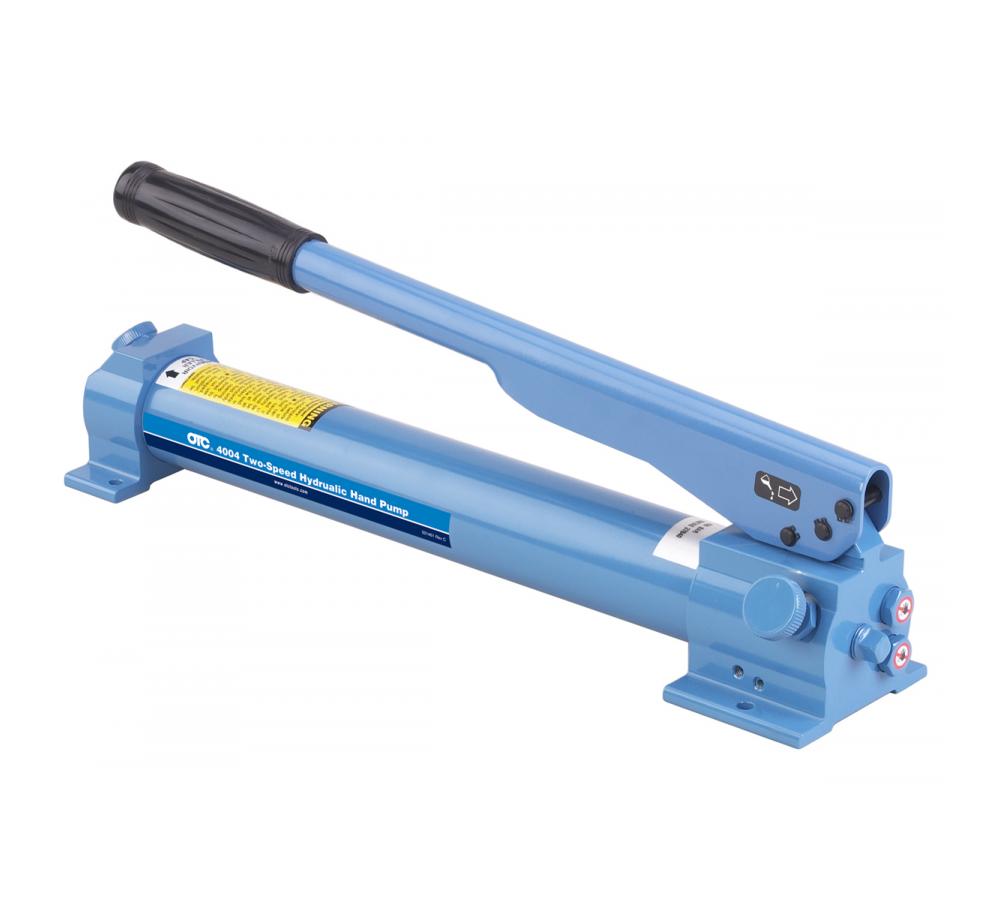

2-speed Hydraulic Hand Pump
Use with single-acting hydraulic rams. Rugged all-metal construction. Maximum handle effort is 90 lbs. Two-speed action provides rapid approach of ram piston to the work. An appropriate and economical power source for applications in which 20 cu. in. of usable oil is adequate.
Maximum operating pressure 10,000 PSI
Volume per stroke (first stage) .305 cu. in.
Volume per stroke (second stage) .076 cu. in.
Reservoir capacity 24.4 cu. in.
Oil port 3/8" NPT
Product identification
- Brand: OTC
