17-1/2 and 30 Ton Hydraulic Puller Set

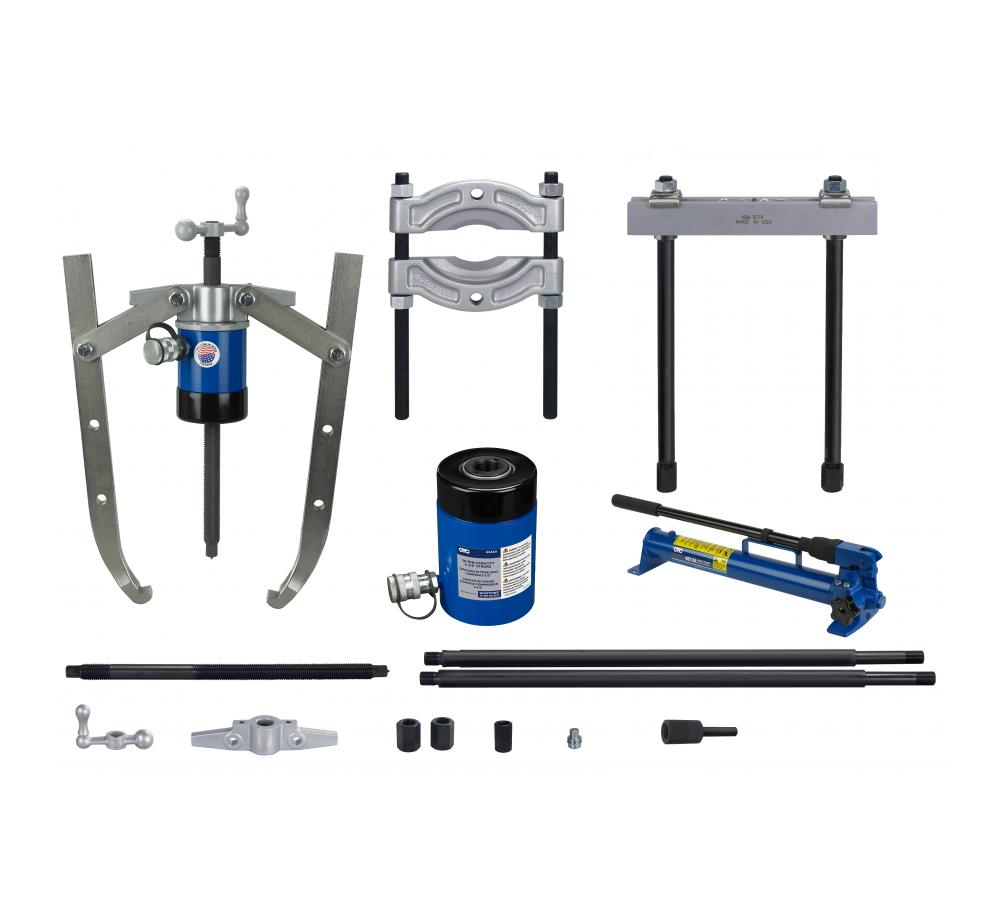

*Photo for illustrative purposes only. For complete set contents, see chart below. Individual items in the sets are fully described elsewhere in this Producatalog, consult index.
Set includes the following components.
P/N 4012A – Single-stage hydraulic hand pump assemply
P/N 9650 – 2-stage hydraulic hand pump w/ 3-way control valve
P/N 9798 – Hose half coupler with dust cap
P/N 9767 – 6 ft. hydraulic hose
P/N 4120A – 17-1/2 ton ram w/ threaded insert
P/N 4121A – 30 ton ram w/ threaded insert
P/N 1027 – 5-ton capacity 2/3-jaw puller
P/N 1062 – 17-1/2 ton capacity hydraulic push-puller w/ 16-1/2" legs
P/N 1105 – 22-1/2" legs for p/n 1062 (pair)
P/N 1070 – 30-ton capacity hydraulic push-puller w/ 18" legs
P/N 1111 – 28" legs for p/n 1070 (pair)
P/N 1066 – 17-1/2 ton 3-jaw Grip-O-Matic puller
P/N 41224 – 17-1/2 ton 2-jaw puller head
P/N 1074 – 30-ton 3-jaw hydraulic puller
P/N 1037 – Combination 2/3-jaw puller
P/N 41226 – 30-ton 2-jaw puller head
P/N 43892 – Long jaws for p/n 1037 (3)
P/N 1041 – Combination 2/3-jaw puller
P/N 30902 – Long jaws for p/n 1041 (3)
P/N 8005 – 5/8"-18 F x 3/8"-16 M threaded adapter (2)
P/N 8006 – 5/8"-18 F x 1/2"-20 M threaded adapter (2)
P/N 8007 – 5/8"-18 F x 1/2"-13 M threaded adapter (2)
P/N 8010 – 5/8"-18 F x 5/8"-11 M threaded adapter (2)
P/N 8013 – 5/8"-18 F x 3/4"-16 M threaded adapter (2)
P/N 8015 – 5/8"-18 F x 3/4"-10 M threaded adapter (2)
P/N 8017 – 5/8"-18 F x 7/8"-14 M threaded adapter (2)
P/N 8018 – 5/8"-18 F x 7/8"-9 M threaded adapter (2)
P/N 8019 – 5/8"-18 F x 1"-14 M threaded adapter (2)
P/N 8020 – 1"-8 F x 5/8"-18 M threaded adapter (1)
P/N 8021 – 1"-8 F x 1"-14 M threaded adapter (1)
P/N 8012 – 1"-14 F x 5/8"-18 M threaded adapter (2)
P/N 8025 – 1-1/4"-7 F x 5/8"-18 M threaded adapter (2)
P/N 8027 – 1-1/4"-7 F x 1"-14 M threaded adapter (2)
P/N 8036 – 1"-14 F x 1"-14 F threaded adapter (2)
P/N 8038 – 5/8"-18 F x 3/4"-16 F threaded adapter (2)
P/N 8056 – Shaft protector set
P/N 8075 – Step plate adapter set
P/N 679 – Pulley pulling attachment
P/N 680 – Pulley pulling attachment
P/N 8044 – Internal threaded adapter set
P/N 1154 – Bearing cup pulling attachment
P/N 1166 – Bearing cup pulling attachment
P/N 34479 – Reducing adapter for use with p/n 1166
P/N 1122 – Bearing Splitter
P/N 1123 – Bearing Splitter
P/N 1126 – Bearing Splitter
P/N 1130 – Bearing Splitter
P/N 24814 – Speed Crank
P/N 24815 – Tee adapter
P/N 24832 – Special puller forcing screw
P/N 27198 – Speed crank
P/N 28228 – Ram cap
P/N 28229 – Ram cap
P/N 32118 – Ram adjusting screw
P/N 32698 – Ram adjusting screw
P/N 34510 – Pushing adapter
P/N 201923 – Pushing adapter
Product identification
- Brand: OTC
